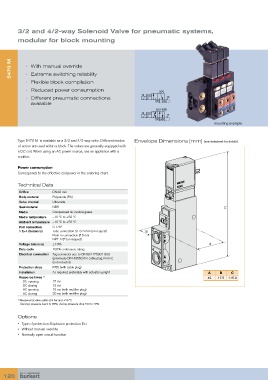

3/2 and 4/2-way Solenoid Valve for pneumatic systems,
modular for block mounting

5470 M • With manual override

• Extreme switching reliability
• Flexible block compilation
• Reduced power consumption 2(A)
12
• Different pneumatic connections 10
available 1(P) 3(R)
2(A) 4(B)
14
12
1(P) 3(R)
mounting example

Type 5470 M is available as a 3/2 and 4/2-way valve. Different modes Envelope Dimensions [mm] (see datasheet for details)
of action are used within a block. The valves are generally equipped with
a DC coil. When using an AC power source, use an appliance with a
rectifier.

Power consumption
Corresponds to the effective coil power in the ordering chart.

Technical Data

Orifice DN4.0 mm
Body material Polyamide (PA)
Valve internal Ultramide
Seal material NBR C
Media Compressed air, neutral gases
Media temperature –10 °C to +50 °C
Ambient temperature –10 °C to +55 °C
Port connection G 1/8”
1 to 4 (Versions) Tube connection SL 6/4 mm (on request) B
Push-in connection Ø 6 mm
NPT 1/8” (on request)
Voltage tolerance ±10% A
Duty cycle 100% continuous rating
Electrical connection Tag connector acc. to DIN EN 175301-803
(previously DIN 43650) for cable plug, Form C
(not included)
Protection class IP65 (with cable plug)
Installation As required, preferably with actuator upright A B C
Response times 1) 45 17.5 115.3
DC opening 15 ms
DC closing 12 ms
AC opening 15 ms (with rectifier plug)
AC closing 20 ms (with rectifier plug)
1) Measured at valve outlet at 6 bar and +20 °C
Opening: pressure rise 0 to 90%, closing: pressure drop 100 to 10%

Options
• Type of protection: Explosion protection Ex i
• Without manual override
• Normally open circuit function
