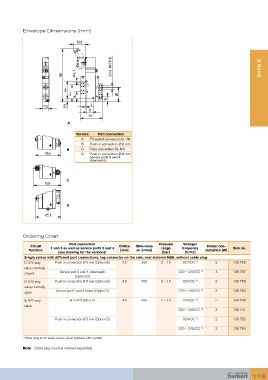

Page 120 - Bürkert

Envelope Dimensions [mm]

5470 E

Version Port connection
A Threaded connection G 1/8
B Push-in connection Ø 6 mm
C Tube connection SL 6/4
D Push-in connection Ø 6 mm,
service ports 2 and 4
downwards

Ordering Chart
Port connection Pressure Voltage/
Circuit 1 and 3 as well as service ports 2 and 4 Orifice QNn-value range frequency Power con- Item no.
function [mm] air [l/min] sumption [W]
(see drawing for the versions) [bar] [V/Hz]
Single valves with different port connections, tag connector on the side, seal material NBR, without cable plug
C 3/2-way Push-in connection Ø 6 mm (Option B) 4.0 300 2 – 10 024/DC 1) 2 136 755
valve normally
closed Service port 2 and 4 underneath 220 – 240/DC 1) 3 136 757
(Option D)
D 3/2-way Push-in connection Ø 6 mm (Option B) 4.0 300 2 – 10 024/DC 1) 2 136 758
valve normally
open Service port 2 and 4 below (Option D) 220 – 240/DC 1) 3 136 760

G 4/2-way G 1/8” (Option A) 4.0 300 2 – 10 024/DC 1) 2 136 749
valve
220 – 240/DC 1) 3 136 751

Push-in connection Ø 6 mm (Option B) 024/DC 1) 2 136 752
220 – 240/DC 1) 3 136 754

1) When using an AC power source, use an appliance with a rectifier.

Note - Cable plug must be ordered separately.

119
