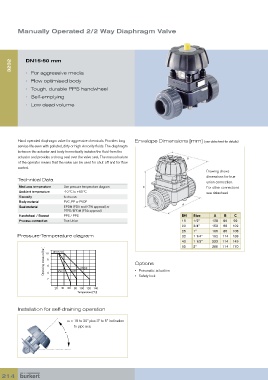

Manually Operated 2/2 Way Diaphragm Valve

3232 DN15-50 mm

• For aggressive media
• Flow optimised body
• Tough, durable PPS handwheel
• Self-emptying
• Low dead volume

Hand operated diaphragm valve for aggressive chemicals. Provides long Envelope Dimensions [mm] (see datasheet for details)
service life even with polluted, dirty or high viscosity fluids. The diaphragm
between the actuator and body hermetically isolates the fluid from the
actuator and provides a strong seal over the valve seat. The manual nature
of the operator means that the valve can be used for shut-off and for flow
control.
Drawing shows
dimensions for true
Technical Data
union connection.
Mediums temperature See pressure temperature diagram For other connections
Ambient temperature -10 °C to +60 °C see datasheet.
Viscosity to viscous
Body material PVC, PP or PVDF
Seal material EPDM (FDA and KTW approval) or
PTFE/EPDM (FDA approval)
Handwheel / Bonnet PPS / PPS DN Size A B C
Process connection True Union 15 1/2” 128 86 92
20 3/4” 152 86 102
25 1” 166 86 108
Pressure-Temperature diagram 32 1 1/4” 192 114 139
40 1 1/2” 222 114 149
50 2” 266 114 170
Operating pressure [bar] 8 6 PVDF Options
DN15-50
10

• Safety lock
2 4 PVC PP • Pneumatic actuation
20 40 60 80 100 120 140
Temperature [°C]

Installation for self-draining operation

α = 15 to 30° plus 3° to 5° inclination
to pipe axis
α
