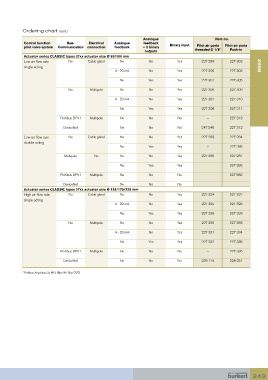

Ordering chart (cont.)
Analogue Item no.
Control function Bus- Electrical Analogue feedback Binary input
pilot valve system Communication connection feedback + 2 binary Pilot air ports Pilot air ports
outputs threaded G 1/8" Push-in
Actuator series CLASSIC types 27xx actuator size Ø 80/100 mm
Low air flow rate No Cable gland No No Yes 227 299 227 302
single acting 8692
4 - 20 mA No Yes 227 300 227 303

No Yes Yes 227 301 227 305
No Multipole No No Yes 227 306 227 309

4 - 20 mA No Yes 227 307 227 310

No Yes Yes 227 308 227 311
Profibus DPV1 Multipole No No No – 227 313

DeviceNet No No No 247 245 227 312
Low air flow rate No Cable gland No No Yes 227 283 227 284
double acting
No Yes Yes – 227 285

Multipole No No No Yes 227 286 227 287
No Yes Yes – 227 288

Profibus DPV1 Multipole No No No – 227 586
DeviceNet No No No
Actuator series CLASSIC types 27xx actuator size Ø 125/175/225 mm
High air flow rate No Cable gland No No Yes 227 324 227 327
single acting
4 - 20 mA No Yes 227 325 227 328
No Yes Yes 227 326 227 329

No Multipole No No Yes 227 330 227 333

4 - 20 mA No Yes 227 331 227 334
No Yes Yes 227 332 227 335

Profibus DPV1 Multipole No No No – 227 336

DeviceNet No No No 239 114 228 231

* Profibus Anschluss 2x M12 (Bus IN / Bus OUT)

243
