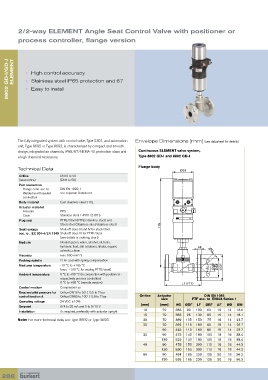

2/2-way ELEMENT Angle Seat Control Valve with positioner or
process controller, flange version

8802 GD-I/GD-J ELEMENT • High control accuracy

• Stainless steel IP65 protection and 67
• Easy to install

The fully integrated system with control valve, Type 2301, and automation Envelope Dimensions [mm] (see datasheet for details)
unit, Type 8692 or Type 8693, is characterized by compact and smooth

design, integrated air channels, IP65/67/NEMA 4X protection class and Continuous ELEMENT valve system,
a high chemical resistance. Type 8802 GD-I and 8802 GD-J

Technical Data Flange body Ø91
Orifice DN10 to 50
(seat orifice) (DN4 to 50)
Port connection
Flange conn. acc. to DIN EN 1092-1
Welded and threaded see separate Datasheet
connection
Body material Cast stainless steel 316L
Actuator material
Actuator PPS
Case Stainless steel 1.4561 (316Ti)
Plug seal PTFE/Steel (PTFE/stainless steel) and
Steel/steel (Stainless steel/stainless steel) HG
Seat leakage Shut-off class III and IV for steel/steel.
acc. to . IEC 534-4/EN 1349 Shut-off class VI for PTFE/steel
(see details in ordering chart)
Medium Neutral gases, water, alcohol, oil, fuels,
hydraulic fluid, salt solutions, alkalis, organic AF
solvents, steam ØD
Viscosity max. 600 mm /s
2
Packing spindle PTFE seal with spring compensation
Mediums temperature -10 °C to +185 °C ØvM ØBF ØDF
(max. +130 °C for sealing PTFE/steel) Ax
Ambient temperature 0 °C to +55 °C (in conjunction with positioners -
respectively process controllers)
0 °C to +80 °C (remote version) LF (FTF)
Control medium Compressed air
Required pilot pressure for Orifice DN10 to 50 | 5.5 to 7 bar
control function A Orifice DN65 to 100 | 5.6 to 7 bar Orifice Actuator DIN EN 1092
size FTF acc. to EN558 Series 1
Operating voltage 24 VDC ±10%
[mm] [mm] HG ØDF LF ØBF AF ØD ØM
Setpoint 0/4 to 20 mA and 0 to 5/10 V
10 70 383 90 130 60 16 14 13.6
Installation As required, preferably with actuator upright
15 70 383 95 130 65 16 14 18.1
Note: For more technical data, see Type 8692 or Type 8693 20 70 389 105 150 75 18 14 23.7
25 70 392 115 160 85 18 14 29.7
90 445 115 160 85 18 14 29.7
32 90 473 140 180 100 18 18 38.4
130 525 140 180 100 18 18 38.4
40 90 478 150 200 110 18 18 44.3
130 530 150 200 110 18 18 44.3
50 90 484 165 230 125 20 18 56.3
130 536 165 230 125 20 18 56.3
