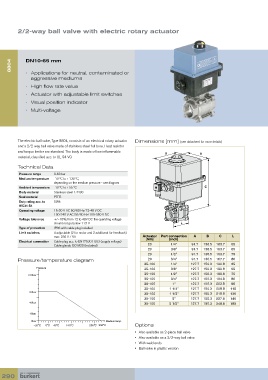

2/2-way ball valve with electric rotary actuator

8804 DN10-65 mm

• Applications for neutral, contaminated or
aggressive mediums
• High flow rate value
• Actuator with adjustable limit switches

• Visual position indicator
• Multi-voltage

The electric ball valve, Type 8804, consists of an electrical rotary actuator Dimensions [mm] (see datasheet for more details)
and a 2/2-way ball valve made of stainless steel full bore. Heat resistor

and torque limiter are standard. The body is made of low inflammable
B A
material, classified acc. to UL 94 V0.
Technical Data
Pressure range 0-63 bar
Medium temperature -10 ºC to +130 ºC,
depending on the medium pressure - see diagram
Ambient temperature -10 ºC to +55 ºC C
Body material Stainless steel 1.4408
Seal material PTFE
Duty rating acc. to 50%
IEC34 S4
Operating voltage 15-30 V AC 50/60 Hz/12-48 V DC
100-240 V AC 50/60 Hz/100-350 V DC
Voltage tolerance +/–10%; from 12 to 48V DC the operating voltage
should not go below 11.5 V L
Type of protection IP66 with cable plug installed
Limit switches 4 adjustable (2 for motor and 2 additional for feedback)
max. 230 V / 5A Actuator Port connection A B C L
Electrical connection Cable plug acc. to EN175301-803 (supply voltage) [Nm] [inch]
Cable glands ISO M20 (included) 20 1/4” 91.7 136.5 163.7 65
20 3/8” 91.7 136.5 163.7 65
20 1/2” 91.7 136.5 163.7 75
Pressure/temperature diagram 20 3/4” 91.7 136.5 167.7 80
35-100 1/4” 127.7 150.3 190.8 65
Pressure 35-100 3/8” 127.7 150.3 190.8 65
35-100 1/2” 127.7 150.3 190.8 75
100bar
35-100 3/4” 127.7 150.3 194.8 80
35-100 1” 127.7 150.3 202.8 90
35-100 1 1/4” 127.7 150.3 208.8 110
63bar
35-100 1 1/2” 127.7 150.3 218.8 120
35-100 2” 127.7 150.3 227.8 140
40bar 35-100 2 1/2” 127.7 150.3 248.8 185

16bar
0bar Medium temp.
–20ºC 0ºC 40ºC 100ºC 200ºC 230ºC Options
• Also available as 2-piece ball valve
• Also available as a 3/2-way ball valve
• With weld ends
• Ball valve in plastic version
