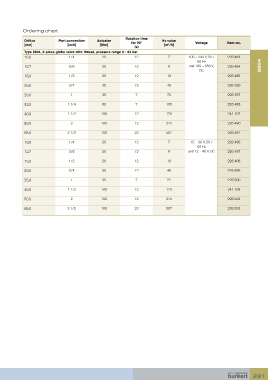

Ordering chart
Rotation time
Orifice Port connection Actuator for 90º Kv value Voltage Item no.
3
[mm] [inch] [Nm] [m /h]
(s)
Type 8804, 3-piece globe valve with thread, pressure range 0 - 63 bar
10.0 1/4 20 12 7 100 – 240 V, 50 / 226 483
60 Hz
12.7 3/8 20 12 9 and 100 – 350 V, 226 484 8804
DC
15.0 1/2 20 12 19 226 485
20.0 3/4 35 12 46 226 486
25.0 1 35 7 72 226 487
32.0 1 1/4 60 7 105 226 488
40.0 1 1/2 100 12 170 241 107
50.0 2 100 12 275 226 490
65.0 2 1/2 100 23 507 226 491
10.0 1/4 20 12 7 15 – 30 V, 50 / 226 496
60 Hz
12.7 3/8 20 12 9 and 12 – 48 V, DC 226 497
15.0 1/2 20 12 19 226 498
20.0 3/4 35 12 46 226 499
25.0 1 35 7 72 226 500
40.0 1 1/2 100 12 170 241 109
50.0 2 100 12 275 226 502
65.0 2 1/2 100 23 507 226 503
