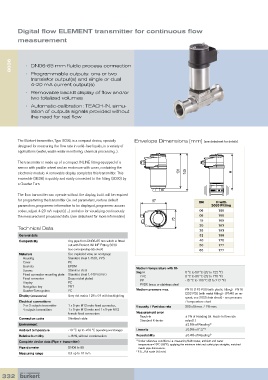

Digital flow ELEMENT transmitter for continuous flow
measurement

8036 • DN06-65 mm fluidic process connection

• Programmable outputs: one or two
transistor output(s) and single or dual
4-20 mA current output(s)
• Removable backlit display of flow and/or
two totalized volumes

• Automatic-calibration: TEACH-IN, simu-
lation of outputs signals provided without
the need for real flow

The Bürkert transmitter, Type 8036, is a compact device, specially Envelope Dimensions [mm] (see datasheet for details)
designed for measuring the flow rate in solid-free liquids, in a variety of
applications (water, waste water monitoring, chemical processing...).

The transmitter is made up of a compact INLINE fitting equipped of a
sensor with paddle-wheel and an enclosure with cover, containing the
electronic module. A removable display completes this transmitter. This 131 140 H
ensemble (SE36) is quickly and easily connected to the fitting (S030) by
a Quarter-Turn.

The flow transmitter can operate without the display, but it will be required
for programming the transmitter (i.e. set parameters, restore default 97 DN H with
parameters, programme information to be displayed, programme access S030 Fitting
codes, adjust 4-20 mA output(s) ...) and also for visualizing continuously 06 160
the measured and processed data. (see datasheet for more information) 08 160
70 15 165
20 163
Technical Data
25 163
General data 32 166
Compatibility Any pipe from DN06-65 mm which is fitted 40 170
out with Bürkert INLINE Fitting S030 50 177
(see corresponding data sheet) 65 177
Materials See exploded view, on next page
Housing Stainless steel 1.4561, PPS
Cover PC
Gaskets EPDM
Screws Stainless steel Medium temperature with fit- 0 °C to 50 °C (32 to 122 °F)
Fixed connector mounting plate Stainless steel 1.4404 (316L) ting in 0 °C to 80 °C (32 to 176 °F)
Fixed connector Brass nickel plated PVC -15 °C to 100 °C (5 to 212 °F)
Display PC PP
Navigation key PBT PVDF, brass or stainless steel
Quarter-Turn system PC Medium pressure max. PN10 (145 PSI) (with plastic fitting) - PN16
(232 PSI) (with metal fitting) - (PN40 on re-
Display (accessories) Grey dot matrix 128 x 64 with backlighting
quest, see S030 data sheet) - see pressure
Electrical connections / temperature chart
2 or 3 outputs transmitter 1 x 5-pin M12 male fixed connector, Viscosity / Particles rate 300 cSt max. / 1% max.
4 outputs transmitters 1 x 5-pin M12 male and 1 x 5-pin M12
female fixed connectors Measurement error
Connection cable Shielded cable Teach-In ±1% of Reading (at Teach-In flow rate
Standard K-factor value)1)
Environment ±2.5% of Reading 1)
Ambient temperature -10 °C up to +60 °C (operating and storage) Linearity ±0.5% of F.S.* 1)
Relative humidity ≤ 85%, without condensation Repeatability ±0.4% of Reading 1)
Complete device data (Pipe + transmitter) 1) Under reference conditions i.e. measuring fluid=water, ambient and water
temperature=20°C (68°F), applying the minimum inlet and outlet pipe straights, matched
Pipe diameter DN06 to 65 inside pipe dimensions.
Measuring range 0.3 up to 10 m/s * F.S.=Full scale (10 m/s)
