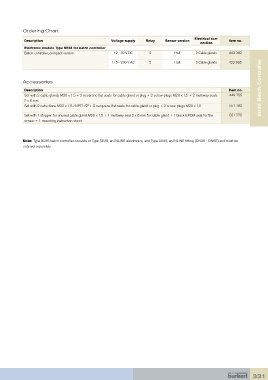

Ordering Chart
Electrical con-
Description Voltage supply Relay Sensor version Item no.
nection
Electronic module Type SE35 for batch controller
Batch controller, compact version 12 - 30 V DC 2 Hall 2 Cable glands 443 360
8035 Batch Controller
115 - 230 V AC 2 Hall 2 Cable glands 423 926

Accessories
Description Item no.
Set with 2 cable glands M20 x 1.5 + 2 neoprene flat seals for cable gland or plug + 2 screw-plugs M20 x 1.5 + 2 multiway seals 449 755
2 x 6 mm
Set with 2 reductions M20 x 1.5 /NPT1/2” + 2 neoprene flat seals for cable gland or plug + 2 screw-plugs M20 x 1.5 551 782
Set with 1 stopper for unused cable gland M20 x 1.5 + 1 multiway seal 2 x 6 mm for cable gland + 1 black EPDM seal for the 551 775
sensor + 1 mounting instruction sheet

Note: Type 8035 batch controller consists of Type SE35, an INLINE electronics and Type S030, an INLINE fitting (DN06 - DN65) and must be
ordered separately

331
