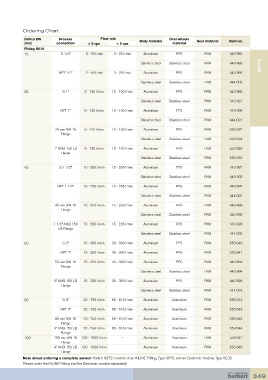

Ordering Chart
Orifice DN Process Flow rate Oval wheels
[mm] connection > 5 cps < 5 cps Body material material Seal material Item no.
Fitting S070
15 G 1/2” 2 - 30 l/min 3 - 25 l/min Aluminium PPS FKM 443 985
8072
Stainless steel Stainless steel FKM 443 990

NPT 1/2” 2 - 30 l/min 3 - 25 l/min Aluminium PPS FKM 443 995
Stainless steel Stainless steel FKM 444 000

25 G 1” 6 - 120 l/min 10 - 100 l/min Aluminium PPS FKM 443 986

Stainless steel Stainless steel FKM 443 991
NPT 1” 6 - 120 l/min 10 - 100 l/min Aluminium PPS FKM 443 996

Stainless steel Stainless steel FKM 444 001
25 mm DIN 16 6 - 120 l/min 10 - 100 l/min Aluminium PPS FKM 553 637
Flange
Stainless steel Stainless steel FKM 553 634
1” ANSI 150 LB 6 - 120 l/min 10 - 100 l/min Aluminium PPS FKM 553 636
Flange
Stainless steel Stainless steel FKM 553 633

40 G 1 1/2” 10 - 250 l/min 15 - 235 l/min Aluminium PPS FKM 443 987
Stainless steel Stainless steel FKM 443 992

NPT 1 1/2” 10 - 250 l/min 15 - 235 l/min Aluminium PPS FKM 443 997

Stainless steel Stainless steel FKM 444 002
40 mm DIN 16 10 - 250 l/min 15 - 235 l/min Aluminium PPS FKM 443 988
Flange
Stainless steel Stainless steel FKM 443 993

1 1/2” ANSI 150 10 - 250 l/min 15 - 235 l/min Aluminium PPS FKM 443 998
LB Flange
Stainless steel Stainless steel FKM 444 003

50 G 2” 15 - 350 l/min 30 - 300 l/min Aluminium PPS FKM 553 640
NPT 2” 15 - 350 l/min 30 - 300 l/min Aluminium PPS FKM 553 641

50 mm DIN 16 15 - 350 l/min 30 - 300 l/min Aluminium PPS FKM 443 989
Flange
Stainless steel Stainless steel FKM 443 994
2” ANSI 150 LB 15 - 350 l/min 30 - 300 l/min Aluminium PPS FKM 443 999
Flange
Stainless steel Stainless steel FKM 444 004
80 G 3” 20 - 733 l/min 66 - 616 l/min Aluminium Aluminium FKM 553 642

NPT 3” 20 - 733 l/min 66 - 616 l/min Aluminium Aluminium FKM 553 643

80 mm DIN 16 20 - 733 l/min 66 - 616 l/min Aluminium Aluminium FKM 553 645
Flange
3” ANSI 150 LB 20 - 733 l/min 66 - 616 l/min Aluminium Aluminium FKM 553 644
Flange
100 100 mm DIN 16 120 - 1200 l/min – Aluminium Aluminium FKM 553 647
Flange
4” ANSI 150 LB 120 - 1200 l/min – Aluminium Aluminium FKM 553 646
Flange
Note about ordering a complete sensor: Switch 8072 consists of an INLINE Fitting, Type S070, and an Electronic module, Type SE32.
Please order the INLINE Fitting and the Electronic module separately!
