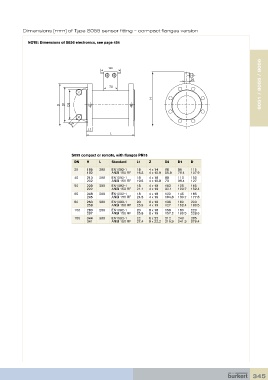

Dimensions [mm] of Type S055 sensor fitting – compact flanges version

NOTE: Dimensions of SE56 electronics, see page 454

8051 / 8055 / 8056
100

25
70

H
D D1 D2

Z
L1
L

S055 compact or remote, with flanges PN16
DN H L Standard L1 Z D2 D1 D
25 185 200 EN1092-1 18 4 x 14 68 85 115
182 ANSI 150 RF 16.3 4 x 15.9 50.8 79.4 107.9
40 213 200 EN1092-1 18 4 x 18 88 110 150
202 ANSI 150 RF 19.5 4 x 15.9 73 98.4 127
50 228 200 EN1092-1 18 4 x 18 102 125 165
222 ANSI 150 RF 21.1 4 x 19 92.1 120.7 152.4
65 248 200 EN1092-1 18 4 x 18 122 145 185
245 ANSI 150 RF 24.3 4 x 19 104.8 139.7 177.8
80 263 200 EN1092-1 20 8 x 18 138 160 200
258 ANSI 150 RF 25.9 4 x 19 127 152.4 190.5
100 283 250 EN1092-1 20 8 x 18 158 180 220
287 ANSI 150 RF 25.9 8 x 19 157.2 190.5 228.6
150 344 300 EN1092-1 22 8 x 22 212 240 285
341 ANSI 150 RF 27.4 8 x 22.2 215.9 241.3 279.4
