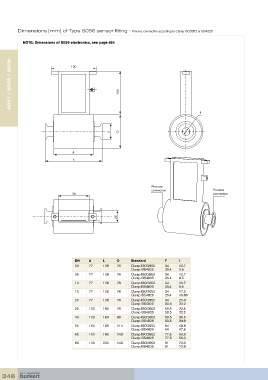

Dimensions [mm] of Type S056 sensor fitting - Process connection according to Clamp ISO2852 or BS4825

NOTE: Dimensions of SE56 electronics, see page 454

8051 / 8055 / 8056 100 100

I

F D

A
L

Process
connection Process
70 connection

25

DN A L D Standard F I
03 77 128 76 Clamp ISO2852 34 12.7
Clamp BS4825 25.4 9.5
06 77 128 76 Clamp ISO2852 34 12.7
Clamp BS4825 25.4 9.5
10 77 128 76 Clamp ISO2852 34 12.7
Clamp BS4825 25.4 9.5
15 77 128 76 Clamp ISO2852 34 17.2
Clamp BS4825 25.4 15.85
20 77 128 76 Clamp ISO2852 34 21.3
Clamp BS4825 50.5 22.2
25 100 180 76 Clamp ISO2852 50.5 22.6
Clamp BS4825 50.5 22.2
40 100 180 89 Clamp ISO2852 50.5 35.6
Clamp BS4825 50.5 34.9
50 100 180 114 Clamp ISO2852 64 48.6
Clamp BS4825 64 47.6
65 100 180 140 Clamp ISO2852 77.5 60.3
Clamp BS4825 77.5 60.3
80 100 200 140 Clamp ISO2852 91 72.9
Clamp BS4825 91 72.9
