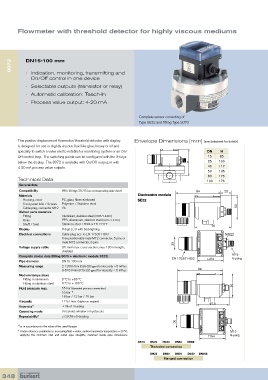

Flowmeter with threshold detector for highly viscous mediums

8072 DN15-100 mm

• Indication, monitoring, transmitting and
On/Off control in one device
• Selectable outputs (transistor or relay)
• Automatic calibration: Teach-In

• Process value output: 4-20 mA

Complete sensor consisting of
Type SE32 and fitting Type S070

This positive displacement flowmeter/threshold detector with display Envelope Dimensions [mm] (see datasheet for details)
is designed for use in slightly viscous fluid like glue, honey or oil and
specially to switch a valve and to establish a monitoring system or an On/ DN H
Off control loop. The switching points can be configured with the 3-keys 15 85
below the display. The 8072 is available with On/Off output, or with H 25 100
4-20 mA process value outputs. 40 117
50 135
80 175
Technical Data 100 176
General data
Compatibility With fittings S070 (see corresponding data sheet) 94 22
Materials Electronics module
Housing, cover PC, glass fibre reinforced SE32
Front panel folio / Screws Polyester / Stainless steel
Cable plug, connector M12 PA 50
Wetted parts materials
Fitting Aluminium, stainless steel (316F/1.4401)
Rotor PPS, Aluminium, stainless steel (316F/1.4401)
Shaft / Seal Stainless steel / FKM or FEP/PTFE 76
Display 8 digit LCD with backlighting
Electrical connections Cable plug acc. to EN 175301-803 SW22
Free positionable male M12 connector, 5 pins or FLOW SWITCH
male M12 connector, 8 pins 30
Voltage supply cable 0.5 mm max. cross section; max. 100 m length,
2
shielded
Complete device data (fitting S070 + electronic module SE32) EN 175301-803 M12-
5-polig
Pipe diameter DN15-100 mm 54
Measuring range 2-1200 l/min (0.26-320 gpm) for viscosity > 5 mPa.s
3-616 l/min (0.78-320 gpm) for viscosity < 5 mPa.s 94
Medium temperature
Fitting in aluminium 0 °C to +80 °C
Fitting in stainless steel 0 °C to +100 °C
Fluid pressure max. 55 bar (threaded process connection) 50
55 bar
1)
18 bar / 12 bar / 10 bar
Viscosity 1 Pa.s max. (higher on request) 67.5
Accuracy *) ±1% of Reading
Operating mode Threshold: window or hysteresis
Repeatability *) ≤ 0.03% of Reading FLOW SWITCH
30
1) or in accordance to the value of the used flanges
*) Under reference conditions i.e. measuring fluid = water, ambient and water temperature = 20 °C, M12-
applying the minimum inlet and outlet pipe straights, matched inside pipe dimensions. 54 8-polig
DN15 DN25 DN40 DN50 DN80
Threaded connection
DN25 DN40 DN50 DN80 DN100
Flanged connection
