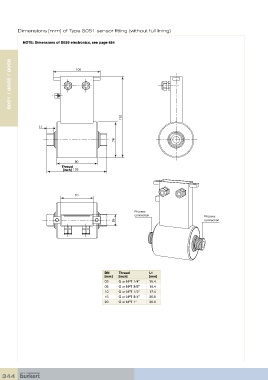

Dimensions [mm] of Type S051 sensor fitting (without full lining)
NOTE: Dimensions of SE56 electronics, see page 454
8051 / 8055 / 8056 100
170
L1
76
80
Thread
[inch] 128
70
Process
connection Process
25 connection
DN Thread L1
[mm] [inch] [mm]
03 G or NPT 1/4” 16.4
06 G or NPT 3/8” 16.4
10 G or NPT 1/2” 17.4
15 G or NPT 3/4” 20.0
20 G or NPT 1” 20.0
