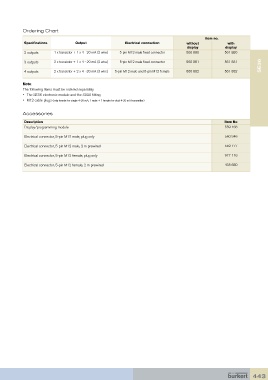

Ordering Chart
Item no.
Specifications Output Electrical connection without with
display display
2 outputs 1 x transistor + 1 x 4 - 20 mA (2 wire) 5-pin M12 male fixed connector 560 880 561 880
SE36
3 outputs 2 x transistor + 1 x 4 - 20 mA (2 wire) 5-pin M12 male fixed connector 560 881 561 881
4 outputs 2 x transistor + 2 x 4 -20 mA (3 wire) 5-pin M12 male and 5-pin M12 female 560 882 561 882

Note:
The following items must be ordered separately
• The SE36 electronic module and the S030 fitting
• M12 cable plugs (only female for single 4-20 mA, 1 male + 1 female for dual 4-20 mA transmitter)

Accessories
Description Item No
Display/programming module 559 168
Electrical connector, 5-pin M12 male, plug only 560 946

Electrical connector, 5-pin M12 male, 2 m prewired 559 177
Electrical connector, 5-pin M12 female, plug only 917 116

Electrical connector, 5-pin M12 female, 2 m prewired 438 680
