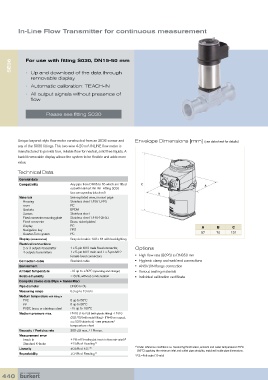

In-Line Flow Transmitter for continuous measurement

SE36 For use with fitting S030, DN15-50 mm

• Up and download of the data through
removable display
• Automatic calibration: TEACH-IN
• All output signals without presence of
flow

Please see fitting S030

Unique bayonet style flow meter constructed from an SE36 sensor and Envelope Dimensions [mm] (see datasheet for details)
any of the S030 fittings. This two-wire 4-20 mA INLINE flow meter is
manufactured to provide true, reliable flow for neutral, solid free liquids. A
backlit removable display allows the system to be flexible and adds more
value.

Technical Data
General data
Compatibility Any pipe from DN06 to 65 which are fitted
out with Bürkert INLINE Fitting S030
(see corresponding data sheet)
Materials See exploded view, on next page
Housing Stainless steel 1.4561, PPS
cover PC
Gaskets EPDM
Screws Stainless steel
Fixed connector mounting plate Stainless steel 1.4404 (316L)
Fixed connector Brass nickel plated
Display PC A B C
Navigation key PBT
Quarter-Turn system PC 97 70 131
Display (accessories) Grey dot matrix 128 x 64 with backlighting
Electrical connections
2 or 3 outputs transmitter 1 x 5-pin M12 male fixed connector, Options
4 outputs transmitters 1 x 5-pin M12 male and 1 x 5-pin M12
female fixed connectors • High flow rate (8026) to DN350 mm
Connection cable Shielded cable • Hygienic clamp and weld end connections
Environment • ANSI/DIN flange connection
Ambient temperature -10 up to +60°C (operating and storage) • Various sealing materials
Relative humidity ≤ 85%, without condensation • Individual calibration certificate
Complete device data (Pipe + transmitter)
Pipe diameter DN06 to 65
Measuring range 0.3 up to 10 m/s
Medium temperature with fitting in
PVC 0 up to 50°C
PP 0 up to 80°C
PVDF, brass or stainless steel -15 up to 100°C
Medium pressure max. PN10 (145 PSI) (with plastic fitting) - PN16
(232 PSI) (with metal fitting) - (PN40 on request,
see S030 datasheet) - see pressure/
temperature chart
Viscosity / Particles rate 300 cSt max. / 1% max.
Measurement error
1)
Teach-In ±1% of Reading (at Teach-In flow rate value)
Standard K-factor ±2.5% of Reading 1)
1) Under reference conditions i.e. measuring fluid=water, ambient and water temperature=20°C
Linearity ±0.5% of F.S.* 1) (68°F), applying the minimum inlet and outlet pipe straights, matched inside pipe dimensions.
Repeatability ±0.4% of Reading 1)
* F.S.=Full scale (10 m/s)
