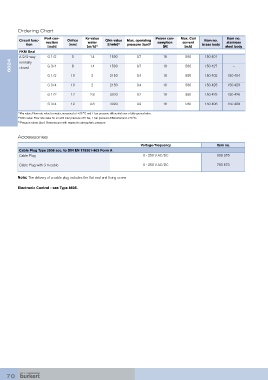

Ordering Chart
Port con- Kv value Power con- Max. Coil Item no.
Circuit func- Orifice QNn value Max. operating Item no.
tion nection [mm] water [l/min] 2) pressure [bar] 3) sumption current brass body stainless
[inch] [m/h] 1) [W] [mA] steel body
FKM Seal
A 2/2-way G 1/2 8 1.4 1500 0.7 18 580 150 401 –
6024 normally G 3/4 8 1.4 1500 0.7 18 580 150 427 –
closed
G 1/2 10 2 2150 0.4 18 580 150 402 150 404

G 3/4 10 2 2150 0.4 18 580 150 428 150 429

G 1/2 12 2.8 3020 0.2 18 580 150 425 150 426
G 3/4 12 2.8 3020 0.2 18 580 150 406 150 408

1) Kvs value: Flow rate value for water, measured at +20 °C and 1 bar pressure differential over a fully opened valve.
2) QNn value: Flow rate value for air with inlet pressure of 6 bar, 1 bar pressure differential and +20 °C.
3) Pressure values [bar]: Overpressure with respect to atmospheric pressure

Accessories

Voltage/frequency Item no.
Cable Plug Type 2508 acc. to DIN EN 175301-803 Form A
Cable Plug 0 - 250 V AC/DC 008 376

Cable Plug with 3 m cable 0 - 250 V AC/DC 783 573

Note: The delivery of a cable plug includes the flat seal and fixing screw
Electronic Control - see Type 8605.
