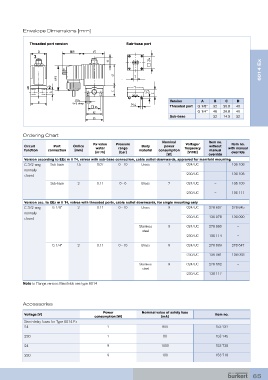

Envelope Dimensions [mm]

Threaded port version Sub-base port

6014 Ex

Version A B C D
4x 8 deep
Threaded port G 1/8” 32 20.8 40
G 1/4” 46 26.8 40
Sub-base 32 14.3 32

Ordering Chart
Nominal Item no.
Kv value Pressure Voltage/ Item no.
Circuit Port Orifice Body power without
function connection [mm] water range material consumption frequency manual with manual
[m /h] [bar] [V/Hz] override
3
[W] override
Version according to EEx m II T4, valves with sub-base connection, cable outlet downwards, approved for manifold mounting
C 3/2-way, Sub-base 1.5 0.07 0 - 10 Brass 7 024/UC – 136 106
normally
closed 230/UC – 136 108 6014 Ex
Sub-base 2 0.11 0 - 6 Brass 7 024/UC – 136 109

230/UC – 136 111

Version acc. to EEx m II T4, valves with threaded ports, cable outlet downwards, for single mounting only
C 3/2-way, G 1/8” 2 0.11 0 - 10 Brass 9 024/UC 278 637 278 645
normally
closed 230/UC 136 078 136 090
Stainless 9 024/UC 278 660 –
steel
230/UC 136 114 –
G 1/4” 2 0.11 0 - 10 Brass 9 024/UC 278 639 278 647

230/UC 136 081 136 093

Stainless 9 024/UC 278 662 –
steel
230/UC 136 117 –

Note to Flange version: Manifolds see type 6014

Accessories
Power Nominal value of safety fuse
Voltage [V] Item no.
consumption [W] [mA]
Semi-delay fuses for Type 6014 Ex
24 7 800 153 737

230 7 80 153 745
24 9 1000 153 738

230 9 100 153 718

65
