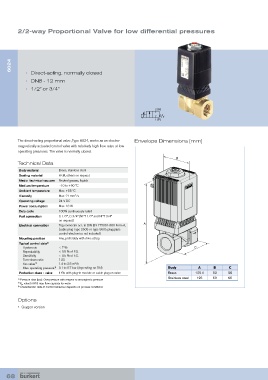

2/2-way Proportional Valve for low differential pressures

6024

• Direct-acting, normally closed
• DN8 - 12 mm
• 1/2” or 3/4”

2 (A)

1 (P)

The direct-acting proportional valve ,Type 6024, works as an electro- Envelope Dimensions [mm]
magnetically actuated control valve with relatively high flow rates at low
operating pressures. The valve is normally closed.
B
Technical Data

Body material Brass, stainless steel
Sealing material FKM, others on request
Media technical vacuum Neutral gasses, liquids
Medium temperature -10 to +90 °C
Ambient temperature Max. +55 °C
2
Viscosity Max. 21 mm /s
Operating voltage 24 V DC
Power consumption Max. 18 W
Duty cycle 100% continuously rated
Port connection G 1/2”, G 3/4” (NPT 1/2” and NPT 3/4”
on request)
Electrical connection Tag connector acc. to DIN EN 175301-803 Form A, A
(cable plug Type 2508 or Type 8605 pluggable
control electronics not included)
Mounting position Any, preferably with drive at top
Typical control data 3)
Hysteresis < 7 % C
Repeatability < 0.5 % of F.S.
Sensitivity < 0.5 % of F.S.
Turn-down ratio 1:25
Kvs value 2) 1.4 to 2.8 m³/h
Max. operating pressure 1) 0.1 to 0.7 bar (depending on DN) Body A B C
Protection class - valve IP65 with plug-in module or cable plug on valve Brass 125.4 53 58
Stainless steel 125 53 65
1) Pressure data [bar]: Overpressure with respect to atmospheric pressure
2) K vs value [m³/h]: max. flow capacity for water
3) Characteristic data of control behaviour depends on process conditions

Options
• Oxygen version

68
