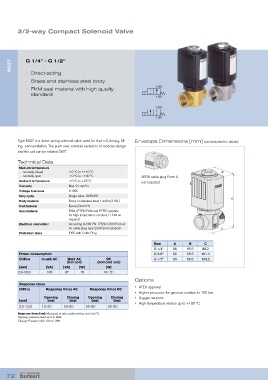

2/2-way Compact Solenoid Valve

6027 G 1/4” - G 1/2”

• Direct-acting
• Brass and stainless steel body
• FKM seal material with high quality 2 (A)
standard
1 (P)

2 (A)

1 (P)

Type 6027 is a direct-acting solenoid valve used for shut-off, dosing, fill- Envelope Dimensions [mm] (see datasheet for details)
ing, and ventilation. The push-over solenoid system is of modular design
and the coil can be rotated 360°.

Technical Data
Medium temperature
normally closed -10 ºC to +140 °C
normally open -10 ºC to +100 °C 2508 cable plug Form A
Ambient temperature -10 ºC to +55 °C not included
2
Viscosity Max. 21 mm /s
Voltage tolerance ±10%
Duty cycle Single valve 100% ED
Body material Brass or stainless steel 1.4404 (316L)
Coil material Epoxy (Class H)
Seal material FKM, (PTFE/FKM and PTFE/graphite
for high temperature versions, EPDM on
request)
Electrical connection According to DIN EN 175301-803 Form A
for cable plug Type 2508 (not included)
Protection class IP65 with Cable Plug

Size A B C
G 1/4” 55 55.5 98.2
Power consumption G 3/8” 55 55.5 101.2
Orifice Inrush AC Hold AC DC G 1/2” 59 55.5 103.2
(hot coil) (hot/cold coil)
[mm] [VA] [VA] [W] [W]
2.0-12.0 105 37 16 16 / 21
Options
Response times
Orifice Response times AC Response times DC • ATEX approval
• Higher pressures for gaseous medium to 100 bar
Opening Closing Opening Closing • Oxygen versions
[mm] [ms] [ms] [ms] [ms]
• High temperature version up to +180 ºC
2.0-12.0 10-20 20-30 20-80 20-30
Response times [ms]: Measured at valve outlet at 6 bar and +20 ºC.
Opening: pressure build-up 0 to 90%
Closing: Pressure relief 100 to 10%
