P. 68

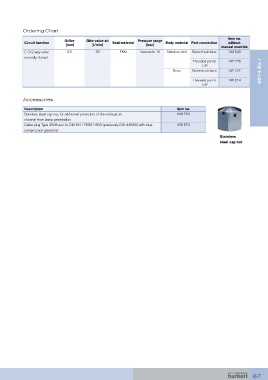

Ordering Chart
Item no.
Orfice QNn-value air Pressure range
Circuit function Seal material Body material Port connection without
[mm] [l/min] [bar]
manual override
C 3/2-way valve 0.9 30 FKM Vacuum to 10 Stainless steel Bürkert sub-base 144 540
normally closed
Threaded port G 147 226
1/8”
Brass Bürkert sub-base 147 227 6014 Ex i
Threaded port G 146 214
1/8”
Accessories
Description Item no.
Stainless steel cap nut, for additional protection of the exhaust air 649 554
channel from damp penetration
Cable plug Type 2508 acc. to DIN EN 175301-803 (previously DIN 43650) with blue 438 574
compression gland nut
Stainless
steel cap nut
67
