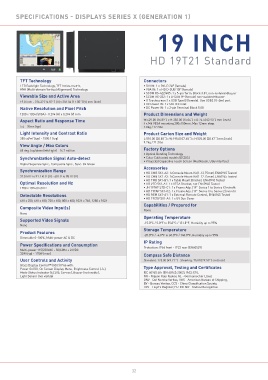

SPECIFICATIONS - DISPLAYS SERIES X (GENERATION 1)

19 INCH

HD 19T21 Standard

TFT Technology Connectors
LED Backlight Technology, TFT Active-matrix, • DVI IN: 1 x DVI-D 24P (female)
MVA (Multi-domain Vertical Alignment) Technology • VGA IN: 1 x HD D-SUB 15P (female)
• SCOM RS-422/485: 1 x 5-pin Term. Block 3.81, non-isolated+Buzzer
Viewable Size and Active Area • SCOM RS-232: 1 x D-SUB 9P (female) non-isolated+Buzzer
19.0 inch - 376.32 [14.82’’] (H) x 301.06 [11.85’’] (V) mm [inch] • If Touchscreen:1 x USB Type B (female). Use USB2.0 (<5m) port.
• AC Power IN: 1 x Std. IEC inlet
Native Resolution and Pixel Pitch • DC Power IN: 1 x 2-pin Terminal Block 5.08
1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm Product Dimensions and Weight
Aspect Ratio and Response Time W:429.00 [16.89’’] x H:382.00 [15.04’’] x D:74.50 [2.93’’] mm [inch]
4 x M6 VESA mounting 280x150mm, Max 12mm deep.
5:4 - 20ms (typ) 7.8kg / 17.2lbs
Light Intensity and Contrast Ratio Product Carton Size and Weight
350 cd/m² (typ) - 1500:1 (typ) L:510.00 [20.08’’] x W:195.00 [7.68’’] x H:525.00 [20.67’’] mm [inch]
9.7kg / 21.3lbs
View Angle / Max Colors
85 deg. (up/down/left/right) - 16.7 million Factory Options
• Optical Bonding Technology
Synchronization Signal Auto-detect • Color Calibrated models (ECDIS)
• Projected Capacitive Touch Screen (Multitouch, USB interface)
Digital Separate Sync., Composite Sync., Sync. On Green Accessories
Synchronization Range • HD CMB SX1-A2: 1xConsole Mount Kit(1-12.75mm).EN60945 Tested
31.5 kHz to 91.1 kHz (H) - 60 Hz to 85 Hz (V) • HD CMB SX1-A3: 1xConsole Mount Kit(1-12.75mm).EN60945 Tested
• HD TMB SX1-B1: 1 x Table Mount Bracket. EN60945 Tested
Optimal Resolution and Hz • HD VED SX1-A1: 1 x VESA Bracket, not EN60945 Tested
1280 x 1024 @ 60 Hz • JH 19TAP STD-C1: 1 x Frame Adp. (19’’ Series 1 to Series X) retrofi t
• HD 19TAP SX1-C2: 1 x Frame Adp. (19’’ Series X to Series 2) retrofi t
Detectable Resolutions • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested
640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024 • HD 19COV SX1-A1: 1 x UV Sun Cover
Capabilities / Prepared for
Composite Video Input(s) None
None
Supported Video Signals Operating Temperature
None -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
Storage Temperature
Product Features -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
Dimmable 0-100%, Multi-power AC & DC
IP Rating
Power Specifi cations and Consumption
Multi-power 115/230VAC - 50/60Hz + 24VDC Protection: IP66 front - IP22 rear (EN60529)
33W (typ) - 125W (max) Compass Safe Distance
User Controls and Activity Standard: 125.00 [49.21’’] - Steering: 75.00 [29.53’’] cm [inch]
Glass Display Control™ (GDC) IP66 with: Type Approval, Testing and Certifi cates
Power On/Off, On Screen Display Menu, Brightness Control (-/+),
Mode Status Indicator (ECDIS, Service), Buzzer (not visible), IEC 60945 4th (EN 60945:2002), IACS E10,
Light Sensor (not visible) NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd,
DNV - Det Norske Veritas, ABS - American Bureau of Shipping,
BV - Bureau Veritas, CCS - China Classifi cation Society,
LRS - Lloyd’s Register, EU-RO-MR - Mutual Recognition
