P. 36

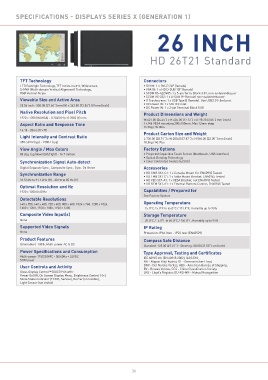

SPECIFICATIONS - DISPLAYS SERIES X (GENERATION 1)


                                                                       26 INCH






                                                                    HD 26T21 Standard





          TFT Technology                                         Connectors
          LED Backlight Technology, TFT Active-matrix, Widescreen,  • DVI IN: 1 x DVI-D 24P (female)
          S-MVA (Multi-domain Vertical Alignment) Technology,    • VGA IN: 1 x HD D-SUB 15P (female)
          RGB Vertical Stripe                                    • SCOM RS-422/485: 1 x 5-pin Term. Block 3.81, non-isolated+Buzzer
                                                                 • SCOM RS-232: 1 x D-SUB 9P (female) non-isolated+Buzzer
          Viewable Size and Active Area                          • If Touchscreen: 1 x USB Type B (female). Use USB2.0 (<5m) port.
          25.54 inch - 550.08 [21.66’’] mm (H) x 343.80 [13.54’’] (V) mm [inch]  • AC Power IN: 1 x Std. IEC inlet
                                                                 • DC Power IN: 1 x 2-pin Terminal Block 5.08
          Native Resolution and Pixel Pitch                      Product Dimensions and Weight
          1920 x 1200 (WUXGA) - 0.2865 (H) x 0.2865 (V) mm
                                                                 W:621.00 [24.45’’] x H:435.00 [17.13’’] x D:98.20 [3.86’’] mm [inch]
          Aspect Ratio and Response Time                         4 x M6 VESA mounting 280x150mm, Max 12mm deep
                                                                 15.9kg / 35.0lbs
          16:10 - 20ms (Tr+Tf)                                   Product Carton Size and Weight
          Light Intensity and Contrast Ratio                     L:730.00 [28.74’’] x W:200.00 [7.87’’] x H:560.00 [22.05’’] mm [inch]
          350 cd/m² (typ) - 1500:1 (typ)                         18.5kg / 40.7lbs
          View Angle / Max Colors                                Factory Options
          88 deg. (up/down/left/right) - 16.7 million            • Projected Capacitive Touch Screen (Multitouch, USB interface)
                                                                 • Optical Bonding Technology
          Synchronization Signal Auto-detect                     • Color Calibrated models (ECDIS)
          Digital Separate Sync., Composite Sync., Sync. On Green  Accessories
          Synchronization Range                                  • HD CMB SX1-C1: 1 x Console Mount Kit. EN60945 Tested
                                                                 • HD TMB SX1-C1: 1 x Table Mount Bracket. EN60945 Tested
          31.5 kHz to 91.1 kHz (H) - 60 Hz to 85 Hz (V)          • HD VED SX1-A1: 1 x VESA Bracket, not EN60945 Tested
                                                                 • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested
          Optimal Resolution and Hz
          1920 x 1200 @ 60 Hz                                    Capabilities / Prepared for
                                                                 See Factory Options
          Detectable Resolutions
          640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024,  Operating Temperature
          1600 x 1200, 1920 x 1080, 1920 x 1200                  -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
          Composite Video Input(s)                               Storage Temperature
          None                                                   -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
          Supported Video Signals                                IP Rating
          None                                                   Protection: IP66 front - IP22 rear (EN60529)
          Product Features                                       Compass Safe Distance
          Dimmable 0-100%, Multi-power AC & DC                   Standard: 125.00 [49.21’’] - Steering: 80.00 [31.50’’] cm [inch]
          Power Specifi cations and Consumption                   Type Approval, Testing and Certifi cates
          Multi-power 115/230VAC - 50/60Hz + 24VDC               IEC 60945 4th (EN 60945:2002), IACS E10,
          51W (max)                                              NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd,
          User Controls and Activity                             DNV - Det Norske Veritas, ABS - American Bureau of Shipping,
                                                                 BV - Bureau Veritas, CCS - China Classifi cation Society,
          Glass Display Control™ (GDC) IP66 with:                LRS - Lloyd’s Register, EU-RO-MR - Mutual Recognition
          Power On/Off, On Screen Display Menu, Brightness Control (-/+),
          Mode Status Indicator (ECDIS, Service), Buzzer (not visible),
          Light Sensor (not visible)
