P. 33

NEW

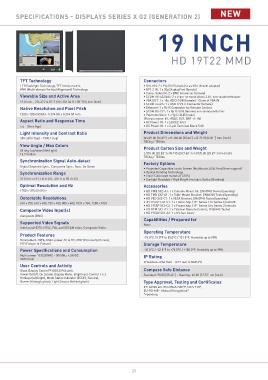

        SPECIFICATIONS - DISPLAYS SERIES X G2 (GENERATION 2)


                                                                       19 INCH






                                                                             HD 19T22 MMD





          TFT Technology                                         Connectors
          LED Backlight Technology, TFT Active-matrix,           • DVI-I IN: 2 x 29p DVI Female (or as VGA IN with adapter)
          MVA (Multi-domain Vertical Alignment) Technology       • DP1.2 IN: 1 x 20p DisplayPort (female)
                                                                 • Comp. Video IN: 2 x BNC Connector (female)
          Viewable Size and Active Area                          • SCOM RS-422/485: 2 x 5-pin Terminal Block 3.81, non-isolated+Buzzer
          19.0 inch - 376.32 [14.82’’] (H) x 301.06 [11.85’’] (V) mm [inch]  • VGA OUT: 1 x 15p HD D-SUB (female) - Clone of VGA IN
                                                                 • SCOM+Touch: 1 x USB TYPE A Connector (female)
          Native Resolution and Pixel Pitch                      • Ethernet: 1 x RJ45 Connector for Remote Control
          1280 x 1024 (SXGA) - 0.294 (H) x 0.294 (V) mm          • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated+Buzzer
                                                                 • Potmeter/User: 1 x 9p D-SUB (male)
          Aspect Ratio and Response Time                         (Potentiometer IN, +5VDC OUT, BRT +/- IN)
                                                                 • AC Power IN: 1 x Std IEC Inlet
          5:4 - 20ms (typ)                                       • DC Power IN: 1 x 2-pin Terminal Block 5.08
          Light Intensity and Contrast Ratio                     Product Dimensions and Weight
          350 cd/m² (typ) - 1500:1 (typ)                         W:429.00 [16.89’’] x H:382.00 [15.04’’] x D:71.50 [2.81’’] mm [inch]
                                                                 TBDkg / TBDlbs
          View Angle / Max Colors                                Product Carton Size and Weight
          85 deg. (up/down/left/right)
          16.7 million                                           L:510.00 [20.08’’] x W:195.00 [7.68’’] x H:525.00 [20.67’’] mm [inch]
                                                                 TBDkg / TBDlbs
          Synchronization Signal Auto-detect                     Factory Options
          Digital Separate Sync., Composite Sync., Sync. On Green
                                                                 • Projected Capacitive Touch Screen (Multitouch,USB, Pen/Glove support)
          Synchronization Range                                  • Optical Bonding Technology
          31.5 kHz to 91.1 kHz (H) - 60 Hz to 85 Hz (V)          • Color Calibrated models (ECDIS)
                                                                 • Sunlight Readable / High Bright (includes Optical Bonding)
          Optimal Resolution and Hz                              Accessories
          1280 x 1024 @ 60 Hz                                    • HD CMB SX2-A1: 1 x Console Mount Kit. EN60945 Tested (pending)
                                                                 • HD TMB SX2-A1: 1 x Table Mount Bracket. EN60945 Tested (pending)
          Detectable Resolutions                                 • HD VED SX2-C1: 1 x VESA Bracket. EN60945 Tested (pending)
          640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024  • JH 19TAP STD-C1: 1 x Frame Adp. (19’’ Series 1 to Series X) retrofi t
                                                                 • HD 19TAP SX1-C2: 1 x Frame Adp. (19’’ Series X to Series 2) retrofi t
          Composite Video Input(s)                               • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested
                                                                 • HD 19COV SX1-A1: 1 x UV Sun Cover
          Composite (BNC)                                        Capabilities / Prepared for
          Supported Video Signals                                None
          Interlaced HDTV, NTSC, PAL and SECAM video, Composite Video
                                                                 Operating Temperature
          Product Features                                       -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
          Dimmable 0-100%, Multi-power AC & DC, PBP (Picture By Picture),
          PIP (Picture In Picture)                               Storage Temperature
          Power Specifi cations and Consumption                   -30.0°C / -22.0°F to +70.0°C / +158.0°F, Humidity up to 95%
          Multi-power 115/230VAC - 50/60Hz + 24VDC               IP Rating
          32W (max)
                                                                 Protection: IP66 front - IP22 rear (EN60529)
          User Controls and Activity
          Glass Display Control™ (GDC) IP66 with:                Compass Safe Distance
          Power On/Off, On Screen Display Menu, Brightness Control (-/+),  Standard: 90.00 [35.43’’] - Steering: 45.00 [17.72’’ cm [inch]
          Hotkeys (left/right), Mode Status Indicator (ECDIS, Service),
          Buzzer (through glass), Light Sensor (behind glass)    Type Approval, Testing and Certifi cates
                                                                 IEC 60945 4th (EN 60945:2002)*, IACS E10*,
                                                                 EU-RO-MR - Mutual Recognition*
                                                                 *=pending
