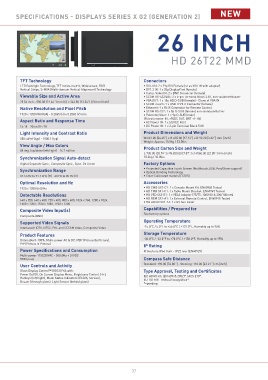

        SPECIFICATIONS - DISPLAYS SERIES X G2 (GENERATION 2)


                                                                       26 INCH






                                                                             HD 26T22 MMD





          TFT Technology                                         Connectors
          LED Backlight Technology, TFT Active-matrix, Widescreen, RGB  • DVI-I IN: 2 x 29p DVI Female (or as VGA IN with adapter)
          Vertical Stripe, S-MVA (Multi-domain Vertical Alignment) Technology  • DP1.2 IN: 1 x 20p DisplayPort (female)
                                                                 • Comp. Video IN: 2 x BNC Connector (female)
          Viewable Size and Active Area                          • SCOM RS-422/485: 2 x 5-pin Terminal Block 3.81, non-isolated+Buzzer
          25.54 inch - 550.08 [21.66’’] mm (H) x 343.80 [13.54’’] (V) mm [inch]  • VGA OUT: 1 x 15p HD D-SUB (female) - Clone of VGA IN
                                                                 • SCOM+Touch: 1 x USB TYPE A Connector (female)
          Native Resolution and Pixel Pitch                      • Ethernet: 1 x RJ45 Connector for Remote Control
          1920 x 1200 (WUXGA) - 0.2865 (H) x 0.2865 (V) mm       • SCOM RS-232: 1 x 9p D-SUB (female) non-isolated+Buzzer
                                                                 • Potmeter/User: 1 x 9p D-SUB (male)
          Aspect Ratio and Response Time                         (Potentiometer IN, +5VDC OUT, BRT +/- IN)
                                                                 • AC Power IN: 1 x Std IEC Inlet
          16:10 - 20ms (Tr+Tf)                                   • DC Power IN: 1 x 2-pin Terminal Block 5.08
          Light Intensity and Contrast Ratio                     Product Dimensions and Weight
          350 cd/m² (typ) - 1500:1 (typ)                         W:621.00 [24.45’’] x H:435.00 [17.13’’] x D:92.20 [3.62’’] mm [inch]
                                                                 Weight: Approx. 15.0kg / 33.0lbs
          View Angle / Max Colors                                Product Carton Size and Weight
          88 deg. (up/down/left/right) - 16.7 million
                                                                 L:730.00 [28.74’’] x W:200.00 [7.87’’] x H:560.00 [22.05’’] mm [inch]
          Synchronization Signal Auto-detect                     18.2kg / 40.0lbs
          Digital Separate Sync., Composite Sync., Sync. On Green  Factory Options
          Synchronization Range                                  • Projected Capacitive Touch Screen (Multitouch,USB, Pen/Glove support)
                                                                 • Optical Bonding Technology
          31.5 kHz to 91.1 kHz (H) - 60 Hz to 85 Hz (V)          • Color Calibrated models (ECDIS)
          Optimal Resolution and Hz                              Accessories
          1920 x 1200 @ 60 Hz                                    • HD CMB SX1-C1: 1 x Console Mount Kit. EN60945 Tested
                                                                 • HD TMB SX1-C1: 1 x Table Mount Bracket. EN60945 Tested
          Detectable Resolutions                                 • HD VED SX2-E1: 1 x VESA Adapter (75/75, 100/100 & 200/100mm)
          640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024,  • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested
                                                                 • HD 26COV SX1-A1: 1 x UV Sun Cover
          1600 x 1200, 1920 x 1080, 1920 x 1200
          Composite Video Input(s)                               Capabilities / Prepared for
          Composite (BNC)                                        See factory options
          Supported Video Signals                                Operating Temperature
          Interlaced HDTV, NTSC, PAL and SECAM video, Composite Video  -15.0°C / 5.0°F to +55.0°C / +131.0°F, Humidity up to 95%
          Product Features                                       Storage Temperature
          Dimmable 0-100%, Multi-power AC & DC, PBP (Picture By Picture),  -30.0°C / -22.0°F to +70.0°C / +158.0°F, Humidity up to 95%
          PIP (Picture In Picture)                               IP Rating
          Power Specifi cations and Consumption                   Protection: IP66 front - IP22 rear (EN60529)
          Multi-power 115/230VAC - 50/60Hz + 24VDC
          59W (max)                                              Compass Safe Distance
          User Controls and Activity                             Standard: 190.00 [74.80’’] - Steering: 110.00 [43.31’’] cm [inch]
          Glass Display Control™ (GDC) IP66 with:                Type Approval, Testing and Certifi cates
          Power On/Off, On Screen Display Menu, Brightness Control (-/+),  IEC 60945 4th (EN 60945:2002)*, IACS E10*,
          Hotkeys (left/right), Mode Status Indicators (ECDIS, Service),  EU-RO-MR - Mutual Recognition*
          Buzzer (through glass), Light Sensor (behind glass)
                                                                 *=pending
