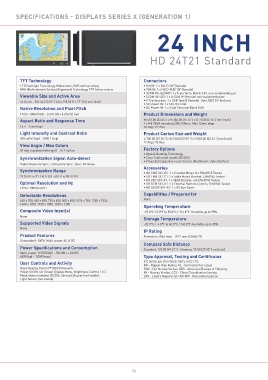

SPECIFICATIONS - DISPLAYS SERIES X (GENERATION 1)


                                                                       24 INCH






                                                                    HD 24T21 Standard





          TFT Technology                                         Connectors
          LED Backlight Technology, Widescreen, RGB vertical stripe,  • DVI IN: 1 x DVI-D 24P (female)
          MVA (Multi-domain Vertical Alignment) Technology, TFT Active-matrix  • VGA IN: 1 x HD D-SUB 15P (female)
                                                                 • SCOM RS-422/485: 1 x 5-pin Term. Block 3.81, non-isolated+Buzzer
          Viewable Size and Active Area                          • SCOM RS-232: 1 x D-SUB 9P (female) non-isolated+Buzzer
          24.0 inch - 531.36 [20.92’’] (H) x 298.89 [11.77’’] (V) mm [inch]  • If Touchscreen: 1 x USB Type B (female). Use USB2.0 (<5m) port.
                                                                 • AC Power IN: 1 x Std. IEC inlet
          Native Resolution and Pixel Pitch                      • DC Power IN: 1 x 2-pin Terminal Block 5.08
          1920 x 1080 (FHD) - 0.276 (H) x 0.276 (V) mm           Product Dimensions and Weight
          Aspect Ratio and Response Time                         W:593.00 [23.35’’] x H:384.00 [15.12’’] x D:70.00 [2.76’’] mm [inch]
                                                                 4 x M6 VESA mounting 280x150mm, Max 12mm deep
          16:9 - 25ms (typ)                                      10.1kg / 22.2lbs
          Light Intensity and Contrast Ratio                     Product Carton Size and Weight
          300 cd/m² (typ) - 3000:1 (typ)                         L:700.00 [27.56’’] x W:180.00 [7.09’’] x H:565.00 [22.24’’] mm [inch]
                                                                 12.9kg / 28.4lbs
          View Angle / Max Colors
          89 deg. (up/down/left/right) - 16.7 million            Factory Options
                                                                 • Optical Bonding Technology
          Synchronization Signal Auto-detect                     • Color Calibrated models (ECDIS)
                                                                 • Projected Capacitive Touch Screen (Multitouch, USB interface)
          Digital Separate Sync., Composite Sync., Sync. On Green  Accessories
          Synchronization Range                                  • HD CMB SX1-B1: 1 x Console Mount Kit. EN60945 Tested
          31.5 kHz to 91.1 kHz (H) - 60 Hz to 85 Hz (V)          • HD TMB SX1-C1: 1 x Table Mount Bracket. EN60945 Tested
                                                                 • HD VED SX1-A1: 1 x VESA Bracket, not EN60945 Tested
          Optimal Resolution and Hz                              • HD REM SX1-A1: 1 x External Remote Control, EN60945 Tested
          1920 x 1080 @ 60 Hz                                    • HD 24COV SX1-A1: 1 x UV Sun Cover
          Detectable Resolutions                                 Capabilities / Prepared for
          640 x 350, 640 x 480, 720 x 400, 800 x 600, 1024 x 768, 1280 x 1024,  None
          1600 x 1200, 1920 x 1080, 1920 x 1200                  Operating Temperature
          Composite Video Input(s)                               -15.0°C / 5.0°F to 55.0°C / 131.0°F, Humidity up to 95%
          None                                                   Storage Temperature
          Supported Video Signals                                -20.0°C / -4.0°F to 60.0°C / 140.0°F, Humidity up to 95%
          None
                                                                 IP Rating
          Product Features                                       Protection: IP66 front - IP22 rear (EN60529)
          Dimmable 0-100%, Multi-power AC & DC
                                                                 Compass Safe Distance
          Power Specifi cations and Consumption                   Standard: 125.00 [49.21’’] - Steering: 75.00 [29.53’’] cm [inch]
          Multi-power 115/230VAC - 50/60Hz + 24VDC
          40W (typ) - 125W (max)                                 Type Approval, Testing and Certifi cates
          User Controls and Activity                             IEC 60945 4th (EN 60945:2002), IACS E10,
                                                                 NK - Nippon Kaiji Kyokai, GL - Germanischer Lloyd,
          Glass Display Control™ (GDC) IP66 with:                DNV - Det Norske Veritas, ABS - American Bureau of Shipping,
          Power On/Off, On Screen Display Menu, Brightness Control (-/+),  BV - Bureau Veritas, CCS - China Classifi cation Society,
          Mode Status Indicator (ECDIS, Service), Buzzer (not visible),  LRS - Lloyd’s Register, EU-RO-MR - Mutual Recognition
          Light Sensor (not visible)
