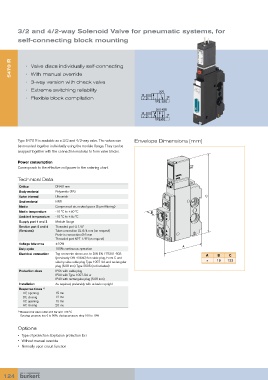

3/2 and 4/2-way Solenoid Valve for pneumatic systems, for
self-connecting block mounting

5470 R • Valve discs individually self-connecting

• With manual override
• 3-way version with check valve
• Extreme switching reliability 2(A)
12
• Flexible block compilation 10
1(P) 3(R)
2(A) 4(B)
14
12
1(P) 3(R)

Type 5470 R is available as a 3/2 and 4/2-way valve. The valves can Envelope Dimensions [mm]
be mounted together individually using the module flange. They can be

snapped together with the connection modules to form valve blocks.
Power consumption
Corresponds to the effective coil power in the ordering chart.

Technical Data
Orifice DN4.0 mm
Body material Polyamide (PA)
Valve internal Ultramide C
Seal material NBR
Media Compressed air, neutral gases (5 µm filtering)
Media temperature -10 °C to +50 °C B
Ambient temperature -10 °C to +55 °C
Supply port 1 and 3 Module flange
Service port 2 and 4 Threaded port G 1/8”
(Versions) Tube connection SL 6/4 mm (on request)
Push-in connection Ø 6 mm
Threaded port NPT 1/8” (on request)
Voltage tolerance ±10%
A
Duty cycle 100% continuous operation
Electrical connection Tag connector above acc. to DIN EN 175301-803 A B C
(previously DIN 43650) for cable plug, Form C and
side by side cable plug Type 1057-SA and rectangular x 18 122
plug (5.08 mm) Type 2505 (not included)
Protection class IP65 with cable plug
IP20 with Type 1057-SA or
IP40 with rectangular plug (5.08 mm)
Installation As required, preferably with actuator upright
Response times 1)
DC opening 15 ms
DC closing 12 ms
AC opening 15 ms
AC closing 20 ms
1) Measured at valve outlet at 6 bar and +20 °C
Opening: pressure rise 0 to 90%, closing: pressure drop 100 to 10%

Options
• Type of protection: Explosion protection Ex i
• Without manual override
• Normally open circuit function
