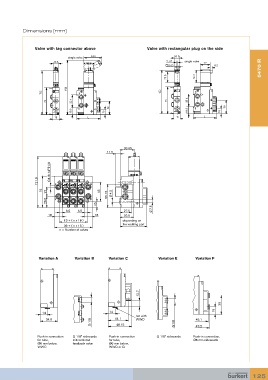

Dimensions [mm]

Valve with tag connector above Valve with rectangular plug on the side
single valve
5470 R
single valve

33.65
11.5

G1/8; NPT1/8

121.9

75 22 45 55.15 4.5
26.5 15

6.5 6.5 27.5 7.6
18 18 32.5
13 + ( n x 18 ) depending on

36 + ( n x 18 ) the working port
n = Number of valves

Variation A Variation B Variation C Variation E Variation F

12.7

38

14 14 15
not with
G 1/8 48.15 G1/8 47.2
34.6 41.1 WWD 45.1

Push-in connection G 1/8” sidewards Push-in connection G 1/8” sidewards Push-in connection,
for tube, mit restricted for tube, Ø6 mm sidewards
Ø6 mm below, feedback valve Ø6 mm below,
WWC WWD or G
