P. 129

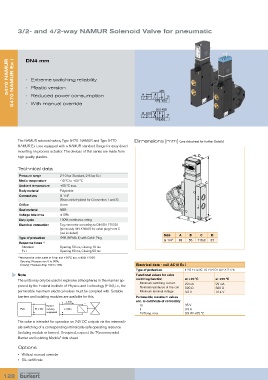

3/2- and 4/2-way NAMUR Solenoid Valve for pneumatic






     5470 NAMUR   5470 NAMUR Ex i  •  Extreme switching reliability     4(B)
            DN4 mm





            •  Plastic version
                                                                14
            •   Reduced power consumption
                                                                      1(P)   3(R)
            •  With manual override
                                                                      2(A) 4(B) 10
                                                                14
                                                                           12
                                                                      1(P) 3(R)



         The NAMUR solenoid valves, Type 5470  NAMUR and Type 5470   Dimensions [mm] (see datasheet for further Details)
         NAMUR Ex i, are equipped with a NAMUR standard flange for easy direct
         mounting on process actuator. The devices of this series are made from
         high quality plastics.                                                          D

         Technical data
          Pressure range    2-10 bar Standard, 2-8 bar Ex i
          Media temperature  -10 ºC to +50 °C                                               C
          Ambient temperature  +55 ºC max.
          Body material     Polyamide
          Connections       G 1/4”
                            (Brass nickel-plated for Connection 1 and 3)
          Orifice           4 mm
          Seal material     NBR
          Voltage tolerance  ±10%
          Duty cycle        100% continuous rating                                  B       A
          Electrical connection  Tag connector according to DIN EN 175301
                            (previously DIN 43650) for cable plug Form C
                            (not included)
                                                                          Size   A   B    C    D
          Type of protection  IP65 (NEMA 4) with Cable Plug
                                                                          G 1/4"  18  55  115.3  37
          Response times  1)
            Standard        Opening 50 ms, Closing 12 ms
            Ex i            Opening 60 ms, Closing 50 ms
         1)   Measured at valve outlet at 6 bar and +20°C acc. to ISO 12238.
          Opening: Pressure rise 0 to 90%,
          Closing: Pressure drop 100 to 10%                  Electrical data - coil AC10 Ex i
                                                             Type of protection    II 2G Ex ia IIC T6 PTB 01 ATEX 2175
         Note                                                Functional values for valve
         The units may only be used in explosive atmospheres in the manner ap-  switching function  at +20 °C  at +55 °C
                                                               Minimum switching current
         proved by the Federal Institute of Physics and Technology (PTB), i.e., the     Nominal resistance of the coil  29 mA  29 mA
                                                                                   320 Ω
                                                                                                 360 Ω
         permissible maximum electrical values must be complied with. Suitable     Minimum terminal voltage  9.3 V  10.4 V
         barriers and isolating modules are available for this.   Permissible maximum values
                                                             acc. to certificate of conformity
                      Barrier/                                 Ui                  35 V
           PLC        isolating                                Ii                  0.9 A
                      component                                Pi/Tumg. max.       0.9 W/+55 °C
         The valve is intended for operation on 24V DC outputs via the intermedi-
         ate switching of a corresponding intrinsically-safe operating resource
         (isolating module or barrier). If required, request the “Recommended
         Barrier and Isolating Module” data sheet.

         Options
         •  Without manual override
         •  SIL certificate
