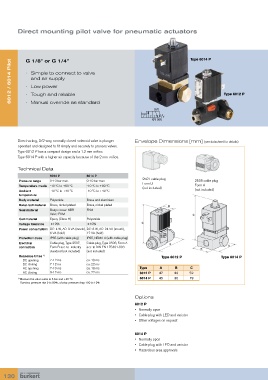

Direct mounting pilot valve for pneumatic actuators

6012 / 6014 Pilot G 1/8” or G 1/4” Type 6014 P Type 6012 P

• Simple to connect to valve
and air supply
• Low power
• Tough and reliable

• Manual override as standard
2(A)

1(P) 3(R)

Direct-acting, 3/2-way, normally closed solenoid valve is plunger Envelope Dimensions [mm] (see datasheet for details)
operated and designed to fit simply and securely to process valves.
Type 6012 P has a compact design and a 1.2 mm orifice.
Type 6014 P with a higher air capacity because of the 2 mm orifice.

Technical Data

6012 P 6014 P
Pressure range 0-10 bar max. 0-10 bar max. 2507 cable plug 2508 cable plug
Form B
Temperature media -10 ºC to +60 ºC -10 ºC to +60 ºC Form A
(not included)
Ambient -10 °C to +40 °C -10 °C to +40 °C (not included)
temperature
Body material Polyamide Brass and aluminium
Banjo bolt material Brass, nickel plated Brass, nickel plated
Seal material Banjo screw: NBR FKM
Valve: FKM
Coil material Epoxy (Class H) Polyamide
Voltage tolerance ±10% ±10%
Power consumption DC: 4 W, AC: 9 VA (inrush), DC: 8 W, AC: 24 VA (inrush),
6 VA (hold) 17 VA (hold)
Protection class IP65 (with cable plug) IP65, NEMA 4 (with cable plug)
Electrical Cable plug, Type 2507, Cable plug, Type 2508, Form A
connection Form B acc. to industry acc. to DIN EN 175301-803
standard (not included) (not included)
Response times 1) Type 6012 P Type 6014 P
DC opening 7-12 ms ca. 18 ms
DC closing 7-12 ms ca. 22 ms
AC opening 7-10 ms ca. 18 ms Type A B C
AC closing 9-12 ms ca. 22 ms 6012 P 47 20 52
1) Measured at valve outlet at 6 bar and +20 °C 6014 P 45 36 79
Opening: pressure rise 0 to 90%, closing: pressure drop 100 to 10%

Options
6012 P
• Normally open
• Cable plug with LED and varistor
• Other voltages on request

6014 P
• Normally open
• Cable plug with LED and varistor
• Hazardous area approvals
