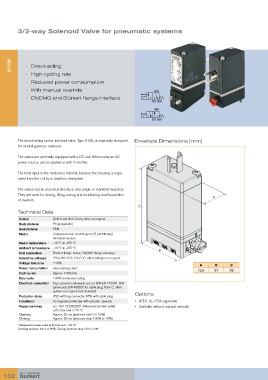

3/2-way Solenoid Valve for pneumatic systems

6106 • Direct-acting

• High cycling rate
• Reduced power consumption
• With manual override 2(A)
• CNOMO and Bürkert flange interface
1(P) 3(R)
4(B)

1(P) 3(R)

The direct-acting rocker solenoid valve, Type 6106, is especially designed Envelope Dimensions [mm]
for neutral gaseous mediums.

The valves are generally equipped with a DC coil. When using an AC
power source, use an appliance with A rectifier.

The heat input in the medium is minimal, because the housing is sepa-
rated from the coil by a stainless steel plate.

The valves can be mounted directly or also single or manifold mounted.
They are used for dosing, filling, mixing and distributing small quantities
A
of medium.
C
Technical Data
Orifice DN0.9 and DN1.2 mm, other on request
Body material PA (polyamide)
Seal material FKM
Media Compressed air, neutral gases (5 µm filtering)
technical vacuum
Media temperature -10 °C to +55 °C
Ambient temperature -10 °C to +55 °C B
Port connection Bürkert flange below, CNOMO flange sideways
Operating voltages 220-240 V DC, 24 V DC, other voltages on request
Voltage tolerance ±10%
A B C
Power consumption see ordering chart
15.5 27 39
Cycling rate Approx. 1000/min
Duty cycle 100% continuous rating
Electrical connection Tag connector sidewards acc. to DIN EN 175301-803
(previously DIN 43650) for cable plug, Form C, other
options on request (not included) Options
Protection class IP20 with tag connector, IP65 with cable plug
Installation As required, preferably with actuator upwards • ATEX, UL/CSA approvals
Response times acc. ISO 12238:2001; Measured at valve outlet • Available without manual override
at 6.3 bar and + 20 °C
Opening Approx. 25 ms (pressure rise 0 to 10%)
Closing Approx. 25 ms (pressure drop 100% to 10%)
1) Measured at valve outlet at 6.3 bar and + 20 °C
Opening: pressure rise 0 to 90%, Closing: pressure drop 100 to 10%
