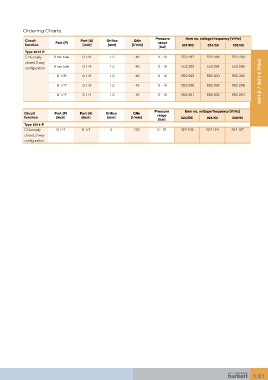

Ordering Charts
Pressure Item no. voltage/frequency [V/Hz]
Circuit Port (P) Port (A) Orifice QNn range
function [inch] [mm] [l/min] 024/DC 024/50 230/50
[bar]
Type 6012 P
C Normally 6 mm tube G 1/8 1.2 48 0 - 10 552 287 552 288 552 290
6012 / 6014 Pilot
closed 3 way
configuration 6 mm tube G 1/4 1.2 48 0 - 10 552 283 552 284 552 286
G 1/8” G 1/8 1.2 48 0 - 10 552 299 552 300 552 302
G 1/4” G 1/8 1.2 48 0 - 10 552 295 552 296 552 298
G 1/4” G 1/4 1.2 48 0 - 10 552 291 552 292 552 294
Pressure Item no. voltage/frequency [V/Hz]
Circuit Port (P) Port (A) Orifice QNn range
function [inch] [inch] [mm] [l/min] 024/DC 024/50 230/50
[bar]
Type 6014 P
C Normally G 1/4 G 1/4 2 120 0 - 10 424 103 424 104 424 107
closed, 3 way
configuration
131
