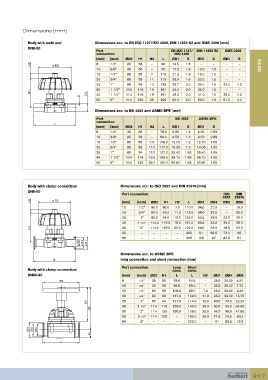

Page 218 - Bürkert

Dimensions [mm]

Body with weld end Dimensions acc. to EN ISO 1127/ISO 4200, DIN 11850 S2 and SMS 3008 [mm]
DN8-50
Port EN ISO 1127/ DIN 11850 R2 SMS 3008
connection ISO 4200
[mm] [inch] ØD2 H1 H2 L ØD1 S ØD1 S ØD1 S
H2 ø D2 8 1/4” 35 56 – 90 13.5 1.6 – – – – 3233
10 3/8” 35 56 – 90 17.2 1.6 13.0 1.5 – –
15 1/2” 80 85 7 110 21.3 1.6 19.0 1.5 – –
20 3/4” 80 93 11 119 26.9 1.6 23.0 1.5 – –
25 1” 80 94 12 129 33.7 2.0 29.0 1.5 25.0 1.2
32 1 1/4” 114 116 19 161 42.4 2.0 35.0 1.5 – –
H1 D1
s 40 1 1/2” 114 116 19 161 48.3 2.0 41.0 1.5 38.0 1.2
50 2” 114 133 25 192 60.3 2.0 53.0 1.5 51.0 1.2

Dimensions acc. to BS 4825 and ASME BPE [mm]
Port BS 4825 ASME BPE
L connection
[mm] [inch] ØD2 H1 H2 L ØD1 S ØD1 S
8 1/4” 35 56 – 78.0 6.35 1.2 6.35 0.89
10 3/8” 35 56 – 89.0 9.53 1.2 9.53 0.89
15 1/2” 80 85 7.0 108.0 12.70 1.2 12.70 1.65
20 3/4” 80 93 11.0 117.0 19.05 1.2 19.05 1.65
25 1” 80 94 12.0 127.0 25.40 1.65 25.40 1.65
40 1 1/2” 114 116 19.0 159.0 38.10 1.65 38.10 1.65
50 2” 114 133 25.0 190.0 50.80 1.65 50.80 1.65

Body with clamp connection Dimensions acc. to ISO 2852 and DIN 32676 [mm]
DN8-50
Port connection ISO DIN
2852 32676
H2 ø D2 [mm] [inch] ØD2 H1 H2 L ØD1 ØD4 ØD5 ØD5
15 1/2” 80.0 85.0 7.0 110.0 34.0 27.5 – 16.0
20 3/4” 80.0 93.0 11.0 119.0 34.0 27.5 – 20.0
25 1” 80.0 94.0 12.0 129.0 50.5 43.5 22.6 26.0
40 1 1/2” 114.0 116.0 19.0 161.0 50.5 43.5 35.6 38.0
H1 50 2” 114.0 133.0 25.0 192.0 64.0 56.5 48.6 50.0
65 – – – – 305 91 83.5 72.1 66
80 – – – – 305 106 97 84.9 81
ø D5 ø D4 ø D1

Dimensions acc. to ASME BPE
L long connection and short connection [mm]

Port connection Long Short
Body with clamp connection conn. conn.
DN65-80 [mm] [inch] ØD2 H1 L L H2 ØD1 ØD4 ØD5
222 8 1/4” 35 56 78.0 64.5 – 25.0 20.22 4.57
10 3/8” 35 56 89.0 89.0 – 25.0 20.22 7.75
15 1/2” 80 85 108.0 89.0 7.0 25.0 20.22 9.40
20 3/4” 80 93 117.0 102.0 11.0 25.0 20.22 15.75
207 25 1” 80 94 127.0 114.0 12.0 50.5 43.5 22.20
40 1 1/2” 114 116 159.0 140.0 19.0 50.5 43.5 34.90
268
50 2” 114 133 190.0 159.0 25.0 64.0 56.5 47.60
65 2 1/2” 114 133 – 190.0 25.0 77.5 70.5 60.2
80 3” – – – 222.0 – 91 83.5 72.9

ØD1 ØD4 ØD5
49
L

217
