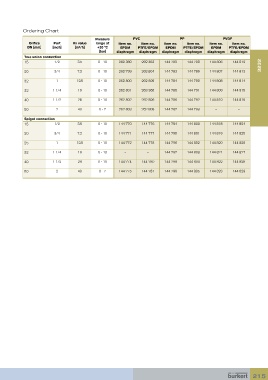

Ordering Chart
Pressure PVC PP PVDF
Orifice Port Kv value range at Item no. Item no. Item no. Item no. Item no. Item no.
DN [mm] [inch] [m³/h] +20 °C EPDM PTFE/EPDM EPDM PTFE/EPDM EPDM PTFE/EPDM
[bar] diaphragm diaphragm diaphragm diaphragm diaphragm diaphragm
True union connection
3232
15 1/2 3.5 0 - 10 262 360 262 363 144 782 144 788 144 806 144 812
20 3/4 7.2 0 - 10 262 799 262 804 144 783 144 789 144 807 144 813

32 1 12.5 0 - 10 262 800 262 805 144 784 144 790 144 808 144 814
32 1 1/4 19 0 - 10 262 801 263 365 144 785 144 791 144 809 144 815

40 1 1/2 28 0 - 10 262 802 262 806 144 786 144 792 144 810 144 816

50 2 40 0 - 7 262 803 262 808 144 787 144 793 – –
Spigot connection
15 1/2 3.5 0 - 10 144 770 144 776 144 794 144 800 144 818 144 824
20 3/4 7.2 0 - 10 144 771 144 777 144 795 144 801 144 819 144 825

25 1 12.5 0 - 10 144 772 144 778 144 796 144 802 144 820 144 826

32 1 1/4 19 0 - 10 – – 144 797 144 803 144 821 144 827
40 1 1/2 28 0 - 10 144 774 144 780 144 798 144 804 144 822 144 828

50 2 40 0 - 7 144 775 144 781 144 799 144 805 144 823 144 829
