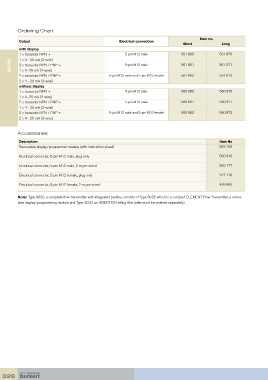

Ordering Chart
Item no.
Output Electrical connection
Short Long
with display
1 x transistor NPN + 5-pin M12 male 561 860 561 870
1 x 4 - 20 mA (2-wire)
8026 2 x transistor NPN / PNP + 5-pin M12 male 561 861 561 871
1 x 4 -20 mA (2-wire)
2 x transistor NPN / PNP + 5-pin M12 male and 5-pin M12 female 561 862 561 872
2 x 4 - 20 mA (3-wire)
without display
1 x transistor NPN + 5-pin M12 male 560 860 560 870
1 x 4 -20 mA (2-wire)
2 x transistor NPN / PNP + 5-pin M12 male 560 861 560 871
1 x 4 - 20 mA (2-wire)
2 x transistor NPN / PNP + 5-pin M12 male and 5-pin M12 female 560 862 560 872
2 x 4 - 20 mA (3-wire)

Accessories

Description Item No
Removable display/programmer module (with instruction sheet) 559 168

Electrical connector, 5-pin M12 male, plug only 560 946
Electrical connector, 5-pin M12 male, 2 m pre-wired 559 177

Electrical connector, 5-pin M12 female, plug only 917 116

Electrical connector, 5-pin M12 female, 2 m pre-wired 438 680

Note: Type 8026, a complete flow transmitter with integrated paddle, consists of Type 8026 which is a compact ELEMENT Flow Transmitter, a remov-
able display/programming module and Type S020, an INSERTION fitting (the latter must be ordered separately)
