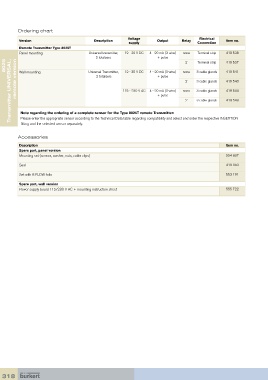

Ordering chart
Voltage Electrical
Version Description Output Relay Item no.
supply Connection
Remote Transmitter Type 8025T
Panel mounting Universal transmitter, 12 - 30 V DC 4 - 20 mA (3-wire) none Terminal strip 419 538
2 totalizers + pulse

8025 2 Terminal strip 419 537
UNIVERSAL, remote version Wall mounting Universal Transmitter, 12 - 30 V DC 4 - 20 mA (3-wire) none 3 cable glands 419 541

+ pulse
2 totalizers
3 cable glands
419 540
2
115 - 230 V AC
4 - 20 mA (3-wire)
Transmitter Note regarding the ordering of a complete sensor for the Type 8025T remote Transmitter: none 3 cable glands 419 544
+ pulse
2
419 543
3 cable glands
Please enter the appropriate sensor according to the Technical Data table regarding compatibility and select and order the respective INSERTION
fitting and the selected sensor separately.

Accessories

Description Item no.
Spare part, panel version
Mounting set (screws, washer, nuts, cable clips) 554 807

Seal 419 350

Set with 8 FLOW foils 553 191
Spare part, wall version
Power supply board 115/230 V AC + mounting instruction sheet 555 722

318
