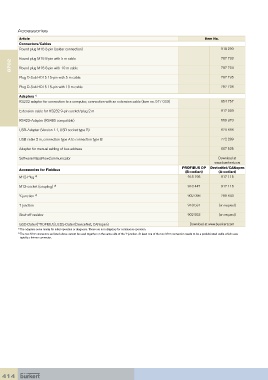

Accessories
Article Item No.
Connectors/Cables
Round plug M16 8-pin (solder connection) 918 299

Round plug M16 8-pin with 5 m cable 787 733
8702 Round plug M16 8-pin with 10 m cable 787 734

Plug D-Sub HD15 15-pin with 5 m cable 787 735

Plug D-Sub HD15 15-pin with 10 m cable 787 736
Adapters 1)
RS232 adapter for connection to a computer, connection with an extension cable (item no. 917 039) 654 757
Extension cable for RS232 9-pin socket/plug 2 m 917 039

RS422-Adapter (RS485 compatible) 666 370
USB-Adapter (Version 1.1, USB socket type B) 670 696

USB cable 2 m, connection type A to connection type B 772 299

Adapter for manual setting of bus address 667 525
Software MassFlowCommunicator Download at
www.buerkert.com
PROFIBUS DP DeviceNet/CANopen
Accessories for Fieldbus
(B-codiert) (A-codiert)
M12-Plug 2) 918 198 917 115
M12-socket (coupling) 2) 918 447 917 116

Y-junction 2) 902 098 788 643
T-junction 918 531 (on request)

Shut-off resistor 902 553 (on request)

GSD-Datei (PROFIBUS), EDS-Datei (DeviceNet, CANopen) Download at www.buerkert.com
1) The adapters serve mainly for initial operation or diagnosis. Those are not obligatory for continuous operation.
2) The two M12 connectors as listed above cannot be used together on the same side of the Y-junction. At least one of the two M12 connection needs to be a prefabricated cable which uses
typiclly a thinner connector..
