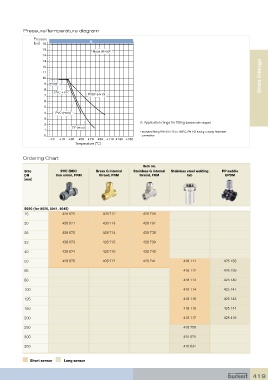

Pressure/temperature diagram
Pressure
[bar] 16 A
15
Metal (PN16)*
14
13
12
11
10 S020 Fittings
9 PVDF
8
PVC + PP
7 PVDF (PN10)
6
5
4 PVC (PN10)
3
2 A: Application range for fitting (blanked with stopper)
PP (PN10)
1
* excepted fitting DN100 (-15 to 160°C, PN 10) having a clamp flowmeter
0 connection
-10 +10 +30 +50 +70 +90 +110 +130 +150
Temperature [°C]
Ordering Chart
Item no.
Size PVC (DIN) Brass G internal Stainless G internal Stainless steel welding PP saddle
DN true union, FKM thread, FKM thread, FKM tab EPDM
[mm]
S020 (for 8026, 8041, 8045)
15 428 670 428 712 428 736
20 428 671 428 713 428 737
25 428 672 428 714 428 738
32 428 673 428 715 428 739
40 428 674 428 716 428 740
50 428 675 428 717 428 741 418 111 425 138
65 418 112 425 139
80 418 113 425 140
100 418 114 425 141
125 418 115 425 143
150 418 116 425 144
200 418 117 425 416
250 418 756
300 420 070
350 416 637
