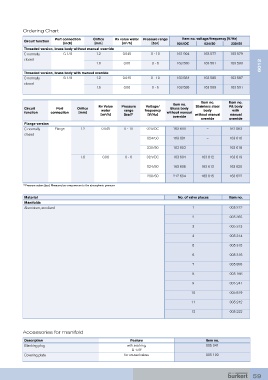

Ordering Chart
Port connection Orifice Kv value water Pressure range Item no. voltage/frequency [V/Hz]
Circuit function
[inch] [mm] [m /h] [bar] 024/DC 024/50 230/50
3
Threaded version, brass body without manual override
C normally G 1/8 1.2 0.045 0 - 10 161 904 163 577 163 579
closed
1.6 0.06 0 - 6 163 580 163 581 163 583 6012

Threaded version, brass body with manual override
C normally G 1/8 1.2 0.045 0 - 10 163 584 163 585 163 587
closed
1.6 0.06 0 - 6 163 588 163 589 163 591

Item no. Item no.
Item no.
Kv Value Pressure Voltage/ Stainless steel PA body
Circuit Port Orifice water range frequency Brass body body with
function connection [mm] without manual
[m³/h] [bar] 1) [V/Hz] without manual manual
override
override override
Flange version
C normally Flange 1.2 0.045 0 - 10 024/DC 163 600 – 161 063
closed
024/50 163 601 – 163 616
230/50 163 603 – 163 618

1.6 0.06 0 - 6 024/DC 163 604 163 612 163 619

024/50 163 605 163 613 163 620
230/50 217 634 163 615 163 622

1) Pressure values [bar]: Measured as overpressure to the atmospheric pressure

Material No. of valve places Item no.
Manifolds
Aluminium, anodized 1 005 312

2 005 355
3 005 313

4 005 314
5 005 315

6 005 316

7 005 893
8 005 166

9 005 241
10 005 819

11 005 242

12 005 222

Accessories for manifold

Description Feature Item no.
Blanking plug with seal ring, 005 041
G 1/8”
Covering plate for unused valves 005 100
