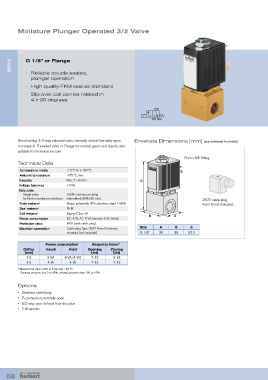

Page 59 - Bürkert

Miniature Plunger Operated 3/2 Valve

6012 G 1/8” or Flange

• Reliable double seated,
plunger operation
• High quality FKM seal as standard
• Slip over coil can be rotated in
4 x 90 degrees

2(A)
1(P) 3(R)

Direct-acting 3/2-way solenoid valve, normally closed (normally open Envelope Dimensions [mm] (see datasheet for details)
on request). Threaded valve or Flange for neutral gases and liquids; also
suitable for technical vacuum.
Port is M5 fitting.
Technical Data

Temperature media -10 ºC to +100 ºC
Ambient temperature +55 ºC, max.
Viscosity Max. 21 mm²/s C
Voltage tolerance ±10%
Duty cycle
Single valve 100% continuous rating
for block mounting on sub-base Intermittent 60% (30 min) 2507 cable plug
Body material Brass, polyamide (PA), stainless steel 1.4305 Form B not included.
Seal material FKM
Coil material Epoxy (Class H)
B A
Power consumption DC: 4 W, AC: 9 VA (inrush), 6 VA (hold)
Protection class IP65 (with cable plug)
Electrical connection Cable plug Type 2507 Form B industry Size A B C
standard (not included) G 1/8” 20 25 57.1

Power consumption Response times 1)
Orifice Inrush Hold Opening Closing
[mm] [ms] [ms]
1.2 9 VA 6 VA (4 W) 7-10 9-12
1.6 4 W 4 W 7-12 7-12
1) Measured at valve outlet at 6 bar and +20 °C
Opening: pressure rise 0 to 90%, closing: pressure drop 100 to 10%

Options
• Stainless steel body
• P-connection, normally open
• 3/2-way user defined flow direction
• 2 W version
