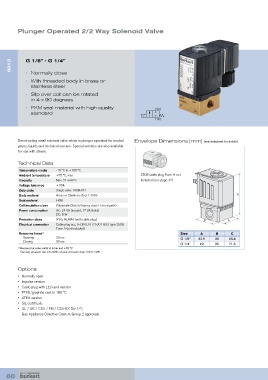

Plunger Operated 2/2 Way Solenoid Valve

6013 G 1/8” - G 1/4”

• Normally close
• With threaded body in brass or
stainless steel
• Slip over coil can be rotated
in 4 x 90 degrees
• FKM seal material with high quality 2 (A)
standard
1 (P)

Direct-acting small solenoid valve which is plunger operated for neutral Envelope Dimensions [mm] (see datasheet for details)
gases, liquids and technical vacuum. Special versions are also available
for use with steam.

Technical Data

Temperature media -10 ºC to +100 ºC
Ambient temperature +55 ºC, max. 2508 cable plug Form A not
Viscosity Max. 21 mm²/s included (see page 32)
Voltage tolerance ±10%
Duty cycle Single valve 100% ED
Body material Brass or Stainless steel 1.4305
Seal material FKM
Coil insulation class Polyamide Class B (epoxy class H on request)
Power consumption AC: 24 VA (inrush), 17 VA (hold)
DC: 8 W
Protection class IP65, NEMA4 (with cable plug)
Electrical connection Cable plug acc. to DIN EN 175301-803 Type 2508
Form A (not included)
Response times 1) Size A B C
Opening 20 ms G 1/8” 32.6 35 65.8
Closing 30 ms
G 1/4” 49 35 71.8
1) Measured at valve outlet at 6 bar and +20 °C
Opening: pressure rise 0 to 90%, closing: pressure drop 100 to 10%

Options
• Normally open
• Impulse version
• Cable plug with LED and varistor
• PTFE/graphite seal to 180 °C
• ATEX version
• SIL certificate
• UL / UR / CSA / FM / CSA-EX Div 1/2,
Gas Appliance Directive Class A, Group 2 approvals
