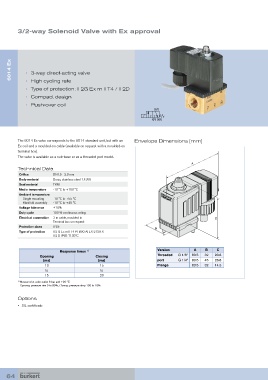

Page 65 - Bürkert

3/2-way Solenoid Valve with Ex approval

6014 Ex • 3-way direct-acting valve

• High cycling rate
• Type of protection: II 2G Ex m II T4 / II 2D
• Compact design
• Push-over coil
2(A)

1(P) 3(R)

The 6014 Ex valve corresponds to the 6014 standard unit, but with an Envelope Dimensions [mm]
Ex coil and a moulded-on cable (available on request with a moulded-on
terminal box).
The valve is available as a sub-base or as a threaded port model.
A
Technical Data
Orifice DN1.5 - 2.0 mm
Body material Brass, stainless steel 1.4305
Seal material FKM
Media temperature -10 °C to +100 °C
Ambient temperature
Single mounting -10 °C to +55 °C
Manifold assembly -10 °C to +40 °C
Voltage tolerance ±10%
Duty cycle 100 % continuous rating
Electrical connection 3 m cable, moulded-in C
Terminal box on request
Protection class IP65 B
Type of protection II 2 G Ex m II T4 PTB00 ATEX 2129 X
II 2 D IP65 T135°C

Version A B C
Response times 1)
Opening Closing Threaded G 1/8” 83.5 32 20.8
[ms] [ms] port G 1/4” 83.5 46 26.8
10 15 Flange 83.5 32 14.3
to to
15 20
1) Measured at valve outlet 6 bar and +20 °C
Opening: pressure rise 0 to 90%, Closing: pressure drop 100 to 10%

Options
• SIL certificate

64
