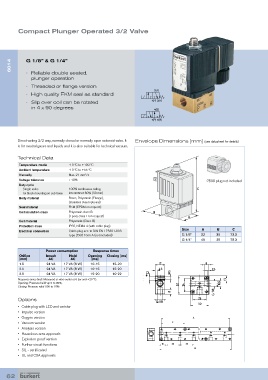

Compact Plunger Operated 3/2 Valve

6014 G 1/8” & G 1/4”

• Reliable double seated,
plunger operation
• Threaded or flange version
2(A)
• High quality FKM seal as standard
• Slip over coil can be rotated 1(P) 3(R)
in 4 x 90 degrees 4(B)

1(P) 3(R)

Direct-acting 3/2 way, normally closed or normally open solenoid valve. It Envelope Dimensions [mm] (see datasheet for details)
is for neutral gases and liquids and it is also suitable for technical vacuum.

Technical Data
Temperature media -10 ºC to +100 ºC
Ambient temperature -10 ºC to +55 ºC
Viscosity Max. 21 mm²/s
Voltage tolerance +10% 2508 plug not included
Duty cycle
Single valve 100% continuous rating C
for block mounting on sub-base Intermittent 60% (30 min)
Body material Brass, Polyamide (Flange),
(stainless steel optional)
Seal material FKM (EPDM on request)
Coil insulation class Polyamide class B B
(Epoxy class H on request) A
Coil material Polyamide (Class B)
Protection class IP65, NEMA 4 (with cable plug)
Size A B C
Electrical connection Cable plug acc. to DIN EN 175301-803
Type 2508 Form A (not included) G 1/8” 32 35 73.3
G 1/4” 46 35 78.3

Power consumption Response times
Orifice Inrush Hold Opening Closing [ms]
[mm] AC AC [ms]
1.5 24 VA 17 VA (8 W) 10-15 15-20
2.0 24 VA 17 VA (8 W) 10-15 15-20
2.5 24 VA 17 VA (8 W) 15-20 10-22
Response times [ms]: Measured at valve outlet at 6 bar and +20 ºC.
Opening: Pressure build-up 0 to 90%,
Closing: Pressure relief 100 to 10%

Options
• Cable plug with LED and varistor
• Impulse version
• Oxygen version
• Vacuum version
• Analysis version
• Hazardous area approvals
• Explosion-proof version
• Further circuit functions
• SIL - certificated
• UL and CSA approvals
