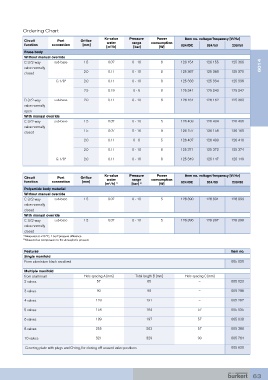

Ordering Chart
                                               Kv value    Pressure    Power       Item no. voltage/frequency [V/Hz]
            Circuit        Port      Orifice    water       range     consumption
              function    connection   [mm]                                      024/DC      024/50     230/50
                                                [m /h]       [bar]      [W]
                                                  3
            Brass body
            Without manual override
            C 3/2-way    sub-base     1.5        0.07       0 - 16      8        126 154     126 155    125 366
            valve normally                                                                                           6014
            closed                    2.0        0.11       0 - 10      8        125 367     125 368    125 370
                          G 1/8”      2.0        0.11       0 - 10      8        125 333     125 334    125 336
                                      2.5        0.19       0 - 6       8        125 341     125 340    125 342

            D 3/2-way    sub-base     2.0        0.11       0 - 10      8        126 161     126 162    125 383
            valve normally
            open
            With manual override
            C 3/2-way    sub-base     1.5        0.07       0 - 10      5        126 403     126 404    126 406
            valve normally
            closed                    1.5        0.07       0 - 16      8        126 157     126 158    126 160
                                      2.0        0.11       0 - 6       5        126 407     126 408    126 410

                                      2.0        0.11       0 - 10      8        125 371     125 372    125 374

                          G 1/8”      2.0        0.11       0 - 10      8        125 349     126 147    126 149


                                               Kv value    Pressure    Power       Item no. voltage/frequency [V/Hz]
            Circuit        Port      Orifice    water       range      consumption
              function    connection  [mm]                                       024/DC      024/50     230/50
                                                [m /h]  1)  [bar]  2)   [W]
                                                  3
            Polyamide body material
            Without manual override
            C 3/2-way    sub-base     1.5        0.07       0 - 10      5        126 390     126 391    126 393
            valve normally
            closed
            With manual override
            C 3/2-way    sub-base     1.5        0.07       0 - 10      5        126 396     126 397    126 399
            valve normally
            closed
           1)  Measured at +20 °C, 1 bar 2)  pressure difference
           2)  Measured as overpressure to the atmospheric pressure

            Features                                                                                    Item no.
            Single manifold
            From aluminium black anodized                                                               005 020
            Multiple manifold
            from aluminium            Hole spacing A [mm]    Total length B [mm]   Hole spacing C [mm]
            2 valves                        57                    65                     –              005 023

            3 valves                        90                    98                     –              005 286

            4 valves                        123                   131                    –              005 287
            5 valves                        156                   164                    57             005 035

            6 valves                        189                   197                    57             005 038
            8 valves                        255                   263                    57             005 386

            10 valves                       321                   329                    90             005 764

             Covering plate with plugs and O-ring, for closing off unused valve positions               005 630
