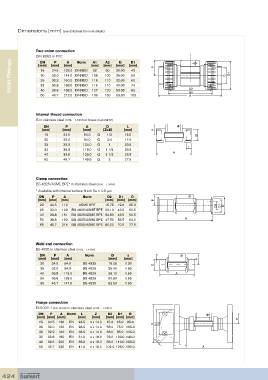

Dimensions [mm] (see datasheet for more details)

True union connection
DIN 8063 in PVC [mm] Norm [mm] [mm] [mm] [mm]
S030 Fittings 15 34.5 128.0 DIN/ISO 106 100 20.00 43 P D 1 D
D1
DN
D
A2
A1
A
P
[mm]
[mm]
96
90
53
144.0 DIN/ISO
20
25.00
32.0
110
116
160.0 DIN/ISO
60
32.2
32.00
25
35.8
32
168.0 DIN/ISO
40.00
110
116
74
40
83
120
A1
45.7
136
212.0 DIN/ISO
63.00
50 39.6 188.0 DIN/ISO 127 130 50.00 103 A2
A
Internal thread connection
G in stainless steel (316L - 1.4404) or brass (CuZn39Pb2)
DN P A D L
[mm] [mm] [mm] [Zoll] [mm] P
15 34.5 84.0 G 1/2 16.0 D
20 32.0 94.0 G 3/4 17.0
25 32.2 104.0 G 1 23.5 L
32 35.8 119.0 G 1 1/4 23.5
40 39.6 129.0 G 1 1/2 23.5 A
50 45.7 148.5 G 2 27.5
Clamp connection
BS 4825/ASME BPE* in stainless steel (316L - 1.4404)
* Available with internal surface finish Ra = 0.8 μm
DN P A Norm D2 D1 D
[mm] [mm] [mm] [mm] [mm] [mm] P
20 34.5 119 ASME BPE 15.75 19.6 25.0 2 1 D
D D
25 32.0 129 BS 4825/ASME BPE 22.10 43.5 50.5
40 35.8 161 BS 4825/ASME BPE 34.80 43.5 50.5
50 39.6 192 BS 4825/ASME BPE 47.50 56.5 64.0 A
65 45.7 216 BS 4825/ASME BPE 60.20 70.5 77.5
Weld end connection
BS 4825 in stainless steel (316L - 1.4404)
DN P A Norm D s s
[mm] [mm] [mm] [mm] [mm] P
20 34.5 84.0 BS 4825 19.05 1.20
D
25 32.0 94.0 BS 4825 25.40 1.65
40 35.8 119.0 BS 4825 38.10 1.65 A
50 39.6 128.0 BS 4825 50.80 1.65
65 45.7 147.0 BS 4825 63.50 1.65
Flange connection
EN1092-1 (ISO PN16) in stainless steel (316L - 1.4404)
DN P A Norm L Z D2 D1 D
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
P
15 34.5 130 EN 23.5 4 x 14.0 45.0 65.0 95.0
D D1 D2
20 32.0 150 EN 28.5 4 x 14.0 58.0 75.0 105.0
25 32.2 160 EN 28.5 4 x 14.0 68.0 85.0 115.0
32 35.8 180 EN 31.0 4 x 18.0 78.0 100.0 140.0
40 39.6 200 EN 36.0 4 x 18.0 88.0 110.0 150.0 Z L
50 45.7 230 EN 41.0 4 x 18.0 102.0 125.0 165.0 A
