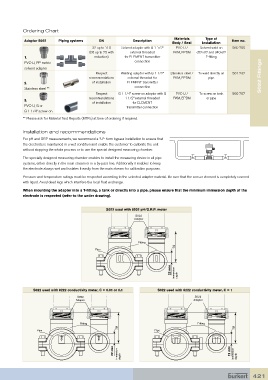

Ordering Chart
Materials Type of
Adaptor S022 Piping systems DN Description Item no.
Body / Seal Installation
32 up to 110 Solvent adaptor with G 1 1/2” PVC-U / Solvent weld on 560 705
(06 up to 25 with external threaded FKM, EPDM d32x32 and d40x32
1. reduction) for ELEMENT transmitter T-fitting
PVC-U, PP metric connection
solvent adapter
Respect Welding adaptor with G 1 1/2” Stainless steel / To weld directly on 561 232
recommendations external threaded for FKM, EPDM pipe S022 Fittings
2. of installation ELEMENT transmitter
connection
Stainless steel **
Respect G 1 1/4” screw-on adaptor with G PVC-U / To screw on tank 560 707
recommendations 1 1/2” external threaded FKM, EPDM or pipe
3.
of installation for ELEMENT
PVC-U, G or transmitter connection
G 1 1/4” screw-on
** Please ask for Material Test Reports (MTRs) at time of ordering if required.

Installation and recommendations
For pH and ORP measurements, we recommend a “U”- form bypass installation to ensure that
the electrode is maintained in a wet condition and enable the customer to calibrate the unit
without stopping the whole process or to use the special designed measuring chamber.
The specially designed measuring chamber enables to install the measuring device in all pipe
systems, either directly in the main stream or in a by-pass line. Additionally it enables to keep
the electrode always wet and isolates it easily from the main stream for calibration purposes.
Pressure and temperature ratings must be respected according to the selected adapter material. Be sure that the sensor element is completely covered
with liquid. Avoid dead legs which interfere the local fluid exchange.
When mounting the adapter into a T-fitting, a tank or directly into a pipe, please ensure that the minimum immersion depth of the
electrode is respected (refer to the under drawing).

S022 used with 8202 pH/O.R.P. meter
S022
Adapter

Fitting
78
Pipe

22 min immersion depth

S022 used with 8222 conductivity meter, C = 0.01 or 0.1 S022 used with 8222 conductivity meter, C = 1
S022 S022
Adapter Adapter

Fitting Fitting
78 78
Pipe Pipe

22 min immersion depth 19 min immersion depth

421
