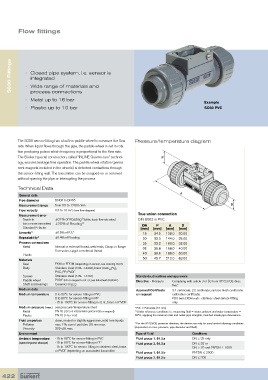

Flow fittings

S030 Fittings • Closed pipe system, i.e. sensor is

integrated
• Wide range of materials and
process connections
• Metal up to 16 bar
Example
• Plastic up to 10 bar SO30 PVC

The S030 sensor-fitting has a built-in paddle wheel to measure the flow Pressure/temperature diagram
rate. When liquid flows through the pipe, the paddle wheel is set in rota-
tion producing pulses which frequency is proportional to the flow rate.
The Bürkert special construction, called ”INLINE Quarter-turn” technol- P
ogy, ensures leakage free operation. The paddle wheel rotation (perma-
nent magnets included in the wheels) is detected contactless through
the sensor-fitting wall. The transmitter can be snapped-on or removed
without opening the pipe or interrupting the process.
Technical Data
A
General data
Pipe diameter DN06 to DN65
Measurement range from 0.5 to 1200 l/min D
Flow velocity 0.3 to 10 m/s (see flow diagram)
Measurement error True union connection
Teach-In ±01% of Reading (at the teach flow rate value) DIN 8063 in PVC
1)
(via a remote transmitter) ±2.5% of Reading 1) DN P A D
Standard K-factor [mm] [mm] [mm] [mm]
Linearity 1) ±0.5% of F.S.* 15 34.5 128.0 20.00
Repeatability 1) ±0.4% of Reading 20 32.0 144.0 25.00
Process connections 25 32.2 160.0 32.00
Metal Internal or external thread, weld ends, Clamp or flange 32 35.8 168.0 40.00
True union, spigot or external thread
Plastic 40 39.6 188.0 50.00
Materials 50 45.7 212.0 63.00
Seal FKM or EPDM (depending on version, see ordering chart)
Body Stainless steel (316L -1.4404), brass (CuZn Pb ),
39
2
PVC, PP, PVDF
Screws Stainless steel (316L -1.4404) Standards, directives and approvals
Paddle wheel PVDF (PP on request or st. st., see datasheet 8030HT) Directive - Pressure Complying with article 3 of §3 from 97/23/CE direc-
Shaft and bearings Ceramics (Al O ) tive.*
2
3
Medium data Approval/Certificate 3.1 certificate; 2.2 certificate; surface finish certificate;
Medium temperature 0 to 50°C for sensor-fitting in PVC on request calibration certificate;
0 to 80°C for sensor-fitting in PP FDA (with EPDM seal) - stainless steel sensor-fitting
-15 to 100°C for sensor-fitting in st. st., brass or PVDF only
Medium pressure (max.) see pressure/temperature chart * F.S. = Full scale (10 m/s)
Metal PN16 (232.16 PSI) (PN40 (580.4 PSI) on request) 1) Under reference conditions i.e. measuring fluid = water, ambient and water temperature =
Plastic PN10 (145.1 PSI) 20°C, applying the minimum inlet and outlet pipe straights, matched inside pipe dimensions.
Fluid properties clean, neutral or slightly aggressive, solid-free liquids
Pollution max. 1%, size of particles 0.5 mm max. * For the 97/23/CE pressure directive, the device can only be used under following conditions
Viscosity 300 cSt. max. (dependent on max. pressure, pipe diameter and fluid).
Environment Type of fluid Conditions
Ambient temperature -15 to 60°C for sensor-fitting in PVC Fluid group 1, §1.3.a DN ≤ 25 only
(operating and storage) -15 to 80°C for sensor-fitting in PP Fluid group 2, §1.3.a DN ≤ 32 or
-15 to 100°C for sensor-fitting in stainless steel, brass DN > 32 and PN*DN ≤ 1000
or PVDF depending on associated transmitter
Fluid group 1, §1.3.b PN*DN ≤ 2000
Fluid group 2, §1.3.b DN ≤ 200

422
