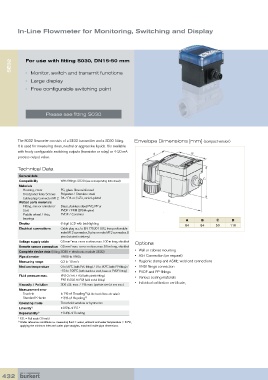

In-Line Flowmeter for Monitoring, Switching and Display

SE32 For use with fitting S030, DN15-50 mm

• Monitor, switch and transmit functions
• Large display
• Free configurable switching point

Please see fitting S030

The 8032 flowmeter consists of a SE32 transmitter and a S030 fitting. Envelope Dimensions [mm] (compact version)
It is used for measuring clean, neutral or aggressive liquids. It is available
with freely configurable switching outputs (transistor or relay) or 4-20 mA
process output value.

Technical Data
General data
Compatibility With fittings S030 (see corresponding data sheet)
Materials
Housing, cover PC, glass fibre reinforced
Front panel folio/Screws Polyester / Stainless steel
Cable plug/connector M12 PA / PA or CuZn, nickel-plated
Wetted parts materials:
Fitting, sensor armature/ Brass, stainless steel, PVC, PP or
Seal PVDF / FKM (EPDM option)
Paddle-wheel / Axis, PVDF / Ceramics
bearings
A B C D
Display 8-digit LCD with backlighting
54 54 50 116
Electrical connections Cable plug acc. to EN 175301-803, free positionable
male M12 connector, 5 pins or male M12 connector, 8
pins (included in delivery)
2
Voltage supply cable 0.5 mm max. cross section; max. 100 m long, shielded Options
2
Remote sensor connection 0.5 mm max. cross section; max. 50 m long, shielded
• Wall or cabinet mounting
Complete device data (fitting S030 + electronic module SE32)
Pipe diameter DN06 to DN65 • AS-i Connection (on request)
Measuring range 0.3 to 10 m/s • Hygienic clamp and ASME weld end connections
Medium temperature 0 to 50°C (with PVC fitting) / 0 to 80°C (with PP fitting) / • ANSI flange connection
-15 to 100°C (with stainless steel, brass or PVDF fitting) • PVDF and PP fittings
Fluid pressure max. PN10 (145.1 PSI) (with plastic fitting) • Various sealing materials
PN16 (232.16 PSI) (with metal fitting)
Viscosity / Pollution 300 cSt. max. / 1% max. (particle size 0.5 mm max.) • Individual calibration certificate,
Measurement error
1)
Teach-In ±1% of Reading (at the teach flow rate value)
Standard K-factor ±3% of Reading 1)
Operating mode Threshold: window or hysteresis
Linearity 1) ±0.5% of F.S.*
Repeatability 1) ±0.4% of Reading
* F.S. = Full scale (10 m/s)
1) Under reference conditions i.e. measuring fluid = water, ambient and water temperature = 20°C,
applying the minimum inlet and outlet pipe straights, matched inside pipe dimensions.
