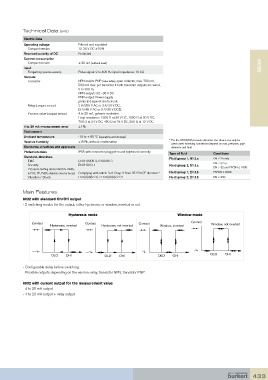

Technical Data (cont..)
Electric Data
Operating voltage Filtered and regulated
Compact version 12-36 V DC ±10%
Reversed polarity of DC Protected
Current consumption
Compact version ≤ 90 mA (without load)
Input SE32
Frequency (remote version) Pulse signal: 2 to 400 Hz input impedance: 10 kΩ
Outputs
Transistor NPN and/or PNP (selectable), open collector, max. 700 mA,
500 mA max. per transistor if both transistor outputs are wired,
0 to 300 Hz
NPN-output: 0.2 - 36 V DC
PNP-output: Power supply
protected against short circuit.
Relay (compact version) 3 A/250 V AC or 3 A/30 V DC;
[3 A/48 V AC or 3 A/30 V DC]2.
Process value (compact version) 4 to 20 mA, galvanic insulation
Loop resistance: 1300 Ω at 36 V DC, 1000 Ω at 30 V DC,
700 Ω at 24 V DC, 450 Ω at 18 V DC, 200 Ω at 12 V DC
4 to 20 mA measurement error ±1%
Environment
Ambient temperature -10 to + 60 °C (operating and storage)
* For the 97/23/CE pressure directive, the device can only be
Relative humidity ≤ 80%, without condensation
used under following conditions (depend on max. pressure, pipe
Standards, directives and approvals diameter and fluid
Protection class IP65 with connector plugged-in and tightened correctly Type of fluid Conditions
Standard, directives Fluid group 1, §1.3.a DN ≤ 25 only
EMC EN 610006-2, 610006-3
Security EN 61010-1 Fluid group 2, §1.3.a DN ≤ 32 or
Pressure (Fitting S030, DN06 to DN65, DN > 32 and PN*DN ≤ 1000
in PVC, PP, PVDF, stainless steel or brass) Complying with article 3 of Chap. 3 from 97/23/CE directive.* Fluid group 1, §1.3.b PN*DN ≤ 2000
Vibration / Shock EN 60068-2-6 / EN 60068-2-27 Fluid group 2, §1.3.b DN ≤ 200

Main Features
8032 with standard On/Off output
- 2 switching modes for the output, either hysteresis or window, inverted or not

Hysteresis mode Window mode
Contact Contact Contact Contact Window, not inverted
Hysteresis, inverted Hysteresis, not inverted Window, inverted

OLO OHI OLO OHI OLO OHI OLO OHI

- Configurable delay before switching
- Possible outputs depending on the version: relay, transistor NPN, transistor PNP

8032 with current output for the measurement value
- 4 to 20 mA output
- 4 to 20 mA output + relay output
