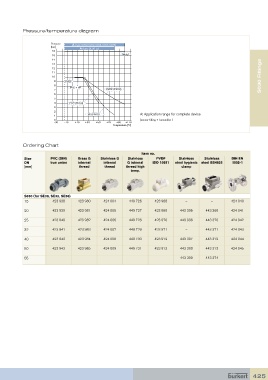

P. 426
Pressure/temperature diagram
Pressure A (Type 8030, 8032, 8034, 8035, 8036)
[bar] A (Type SE30 Ex)
16
15 Metal
14
13
12
11
10 S030 Fittings
9 PVDF
8
PVC + PP
7 PVDF (PN10)
6
5
4 PVC (PN10)
3
2
PP (PN10) A: Application range for complete device
1
0 (sensor-fitting + transmitter )
-30 -10 +10 +30 +50 +70 +90 +110
Temperature [°C]
Ordering Chart
Item no.
Size PVC (DIN) Brass G Stainless G Stainless PVDF Stainless Stainless DIN EN
DN true union internal internal G internal ISO 10931 steel hygienic steel BS4825 1092-1
[mm] thread thread thread high clamp
temp.
S030 (for SE30, SE32, SE36)
15 423 938 423 980 424 004 449 726 423 968 – – 424 040
20 423 939 423 981 424 005 449 727 423 969 443 395 443 369 424 041
25 423 940 423 982 424 006 449 728 423 970 443 396 443 370 424 042
32 423 941 423 983 424 007 449 729 423 971 – 443 371 424 043
40 423 942 423 984 424 008 449 730 423 972 443 397 443 372 424 044
50 423 943 423 985 424 009 449 731 423 973 443 398 443 373 424 045
65 – – – – – 443 399 443 374 –
425
